The BRICKette™
Portable Explosion Proof LED Work Light
The most versatile, Portable Explosion Proof LED Work Light in a small hand-held package.
 |  |  |  |  |
 |  |  |
Datasheet
IMAGE GALLERY
Click to Enlarge & View Slider of Images
VIDEOS
Product Features
Additional information
| Approved for: | Suitable for simultaneous us in |
|---|---|
| Conforms to: | UL Stds 153, 8750, 844; |
| Certified to: | CSA Std C22.2#s 12, 25, 30, 137, 250.13 |
| Suitable for Wet Location | |
| Certified: | Portable Luminary, Portable Luminaire |
| Temperature Rating: | T-code: T5, (-25° to +40°C) |
| LED Color: | ~6000K, CRI >70 |
| Light Head Power: | 21VDC, 800mA, LVLE |
| Illuminous: | 26,000 lux at 1 ft |
| Light Output: | >2,500 lumens |
| Reflective Optic Beam Angle: | 60° |
| Weight: | 3.5 lbs (light head only), 4.2- 5.3 lbs (light head with handle) |
| Dimensions: | 6"L x 2.9"W x 2.3"H |
| Material: | Machined out of solid blocks of 6061-T6 Aluminum |
| Accessories: | Blast Shields, Dome Diffuser, Overspray Protection Bags |
| Variable Mounting Options: | Magnetic, Solid and Slotted Mounting Handles |
| Country of origin: | Designed & Manufactured in the USA |
Reviews
3 reviews for The BRICKette™
Full Product Description
The BRICKette™
Model 2106 | Portable Explosion Proof LED Work Light
Like it’s big brother the (BRICK®), the BRICKette™ | Portable Explosion Proof LED Work Light packs a level of versatility and durability like no other hand-held work light or hand lamp. Because of it’s low voltage low energy (LVLE) rating, we have the flexibility to power up to five lights from one power box (string light configuration).
The handles are purpose built: providing better ergonomics and doubles as either a stand, mount or drop hook. This explosion proof work light is designed to meet the needs in a variety of applications from inspection, aviation construction & maintenance, confined spaces… and so much more.
The BRICKette™ is certified and approved for hazardous locations (HazLoc):
- Class I, Div 1 & 2, Groups C & D;
- Class II, Div 1 & 2, Groups E, F & G
- CSA Zones 1 & 2; Zones 20, 21 & 22
- Portable Luminaire (UL 153)
- Wet Location (NEMA TYPE 6-P)
- Low Voltage (LVLE)
Go to our Industries & Applications page to view more examples of our lights in use.
Designed & Manufactured in the USA
*Equipment specifications, options & availability subject to change.
(Last update: August 25, 2021)
HANDLES / MOUNTING OPTIONS
Handles also double as Optional Mounts or Stands
-

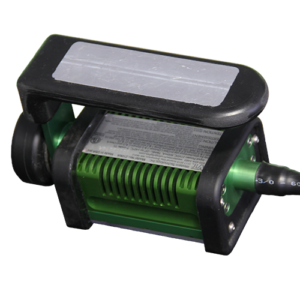

- High Profile / Magnetic Handle
-
- Short Profile / Magnetic Handle
-
- High Profile / Long Solid Handle
-
- Low Profile / Long Solid Handle
-

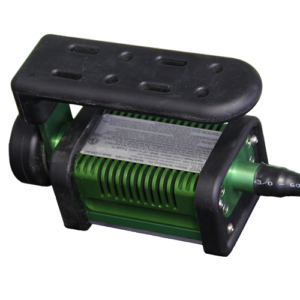

- High Profile / Long Slotted Handle
-
- Low Profile / Long Slotted Handle
-
- High Profile, Short Slotted Handle
-
- Low Profile / Short Slotted Handle
ACCESSORIES
-

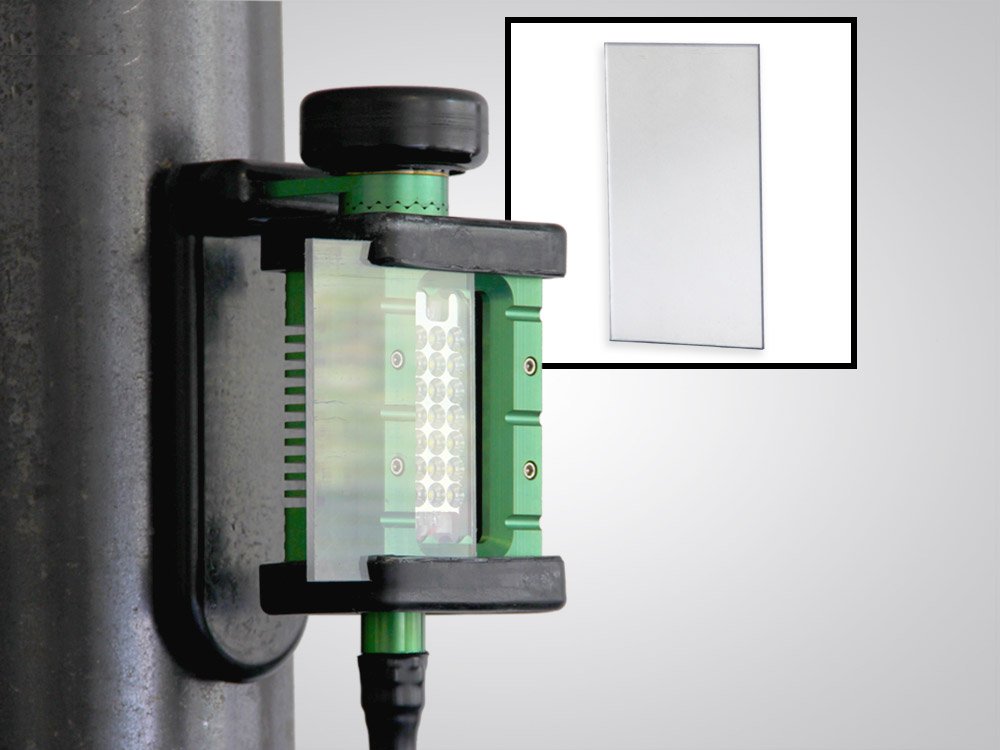

- #2106BSPAK | Blast Shields (Box of 24qty)
-

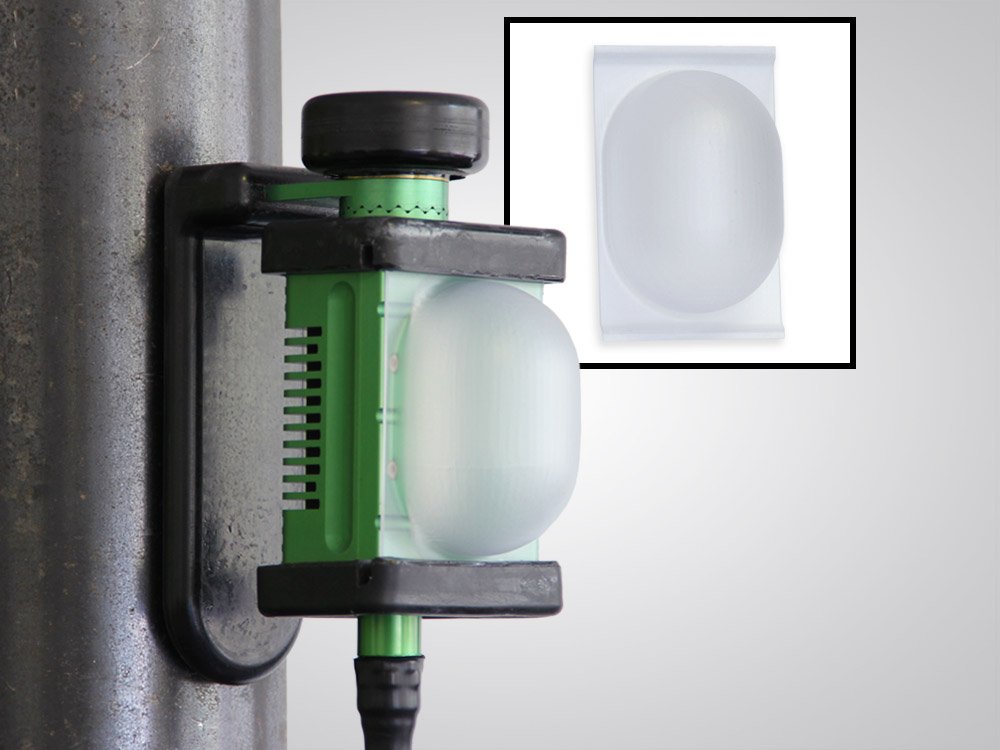

- #2106Dome Diffuser | Dome Diffuser for the BRICKette™
-

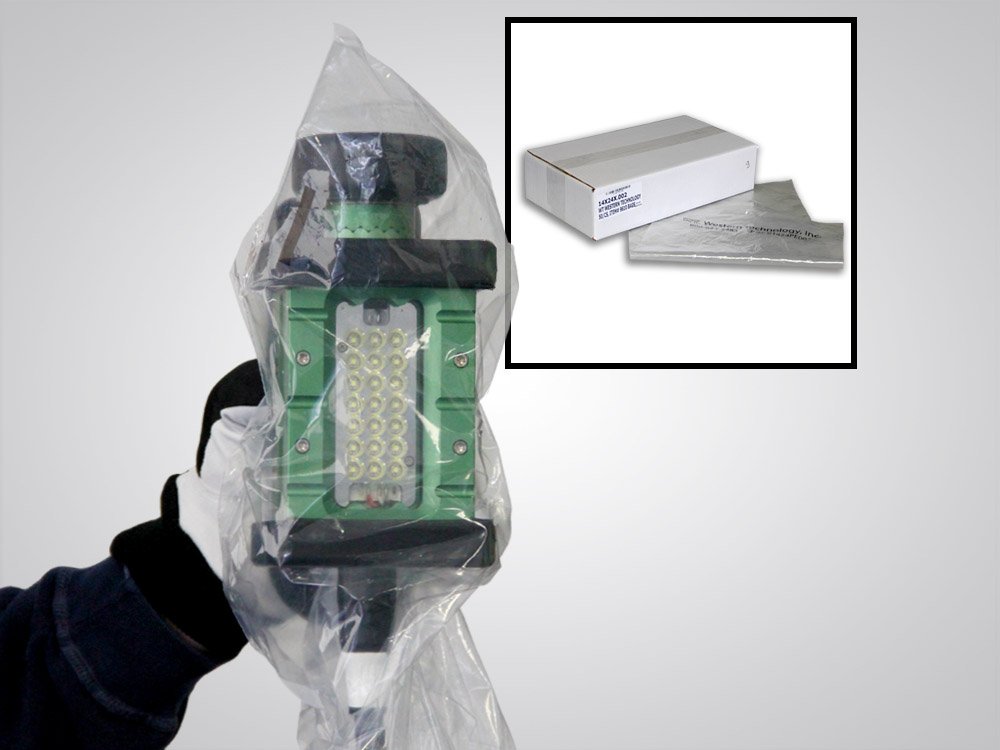

- #9610BAG | Overspray Protection Bag (Box of 50 qty)
-
- #2106CASE | Rolling Resin Carrying Case (sold separately)
VARIABLE CONTROL OPTION
-
- Non-Explosion Proof Variable Control Power Box for the A-Model BRICK® & BRICKette™ (optional dimmer switch)
-
- Explosion Proof Variable Control Power Box for the C-Model BRICK® & BRICKette™ (optional dimmer switch)
A-MODEL or C-MODEL
#2106A2 | A-Model BRICKette™ :: Explosion Proof Lighthead, SOOW Cable (Various Cord Lengths available), NON-Explosion Proof Power Box, NON-Explosion Proof Plug, Choice of Mounting Handle.
#2106C2 | C-Model BRICKette™ :: Explosion Proof Lighthead, SOOW Cable (Various Cord Lengths available), Explosion Proof Power Box, Explosion Proof Plug, Choice of Mounting Handle.
GEN 3 FEATURES
The Gen3, BRICKette™ is now built with “on-site” cable replacement features. Its distinguishing feature is the green Bend Radius Sleeve (*Patent Pending) on the the cable connection points. Replacement pieces include the power supply box, the cable, and the lighthead. Repair tool kit is also available for purchase (sold separately).
For pricing and availability on the BRICKette™ portable light system…
Click the “Add to Cart” button above and submit a product inquiry today!
Superintendent – US AIR NATIONAL GUARD –
… I wanted to follow up with you on the BRICKette light we purchased. We finished our project of removing all 8 tanks of fuel foam from our decommissioned static display today. I cannot explain how having that light in there helped with the safety and visual comfort doing the work… I can only guess that by having the amount of light in there shaved at least three days off toward the completion of this project. In the past, we have used headlamps and small flashlights to be able to see. We simply gained access to the tank and put the light in the corner of the tank and went to work with no visual obstruction or batteries dying while working inside. I’m sure you can imagine how dark it gets in there when there is no light and then trying to wiggle out without hitting your head on something or catching clothing or a respirator hose on the way out. I have already talked to my leadership about purchasing another light during the upcoming fiscal year. We also had some folks from the 193rd PAANG help us and they went back with the information to purchase one as well.
Thank you for providing us with a great product.“
Respectfully,
Paint Shop, Air Force Base –
“Everyone loves them and are using it in every area, big impact in fuel cell and the paint barn already.”
Tank Manufacture –
…The BRICKette is an engineering marvel. It exceeds all the expectation that our shop requires from it. I do not have pictures of it in use but I will make a note to myself to take some during the blasting and coating of our next pressure vessel.
