LINKaLIGHT™
Industrial LED String Light System
The LINKaLIGHT™ (Model 4400) is an industrial LED string light system that connects end-to-end. Can be used individually or daisy-chained together. Each light head boasts 4,000 Lumens with a wide floodlight projection.
 |  |  |
Datasheet
IMAGE GALLERY
Click to Enlarge & View Slider of Images
VIDEOS
Product Features
Additional information
| Light Output: | Variable Intensity Control (Dimmer): with a continuous range of luminous flux: 600 to +4,000 Lumens |
|---|---|
| Brightness: | High: ~4,000 lux @ 1ft |
| Reflective Optic Angle: | ~75° (Floodlight Projection) |
| Observed Beam Angle: | ~100° (Floodlight Projection) |
| Light Source: | COB LED |
| Color Temperature: | ~5700K, 70CRI |
| Power Input: | 120-277 VAC, 50/60 Hz |
| Material/Construction: | Light Body: machined from sold blocks of 6061-T6 Aluminum |
| Dimensions: | 8.0" Length |
| Weight: | Lighthead: ~5.3 lbs |
| Options & Special Features: | – Blast Shields, Diffusers, Dome Diffusers |
Reviews
Full Product Description

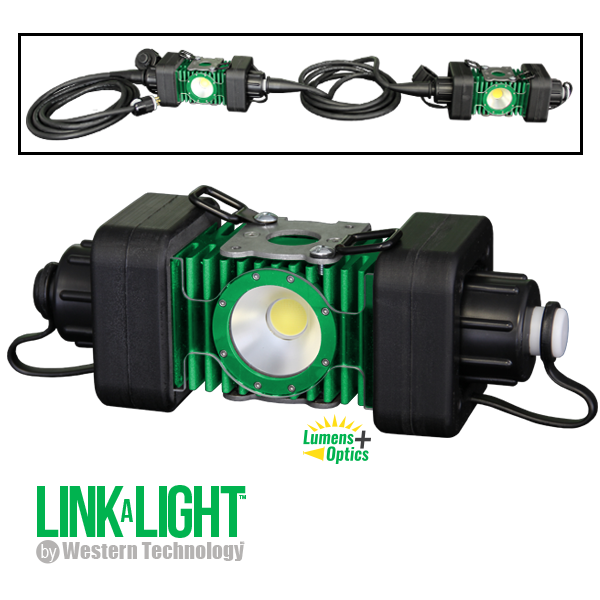

LINKaLIGHT™
Model 4400 | Industrial LED String Light System
Western Technology, the recognized leader in rugged portable lighting for hazardous locations, introduces our LINKaLIGHT™ system for ordinary locations. The LINKaLIGHT™ is an industrial LED string light system that connects end-to-end. Just screw in the interconnecting cords to the light heads to built out your light system.
System Features
This system allows the operator to securely position multiple light heads in a string light configuration, using only 1 power supply. Each light head emits a wide floodlight projection and boast up to 4,000 Lumens, while only drawing less than 1amp. You have the flexibility of adding or removing light heads to extend up to 250 ft. In addition, each light head has a dimmer function for proper illumination of variable size workspaces.
LINKaLIGHT™ Scaffolding Mount
Scaffolding Mount attachment, optional accessory for the 4400 – LINKaLIGHT™ | Industrial LED String Light System.

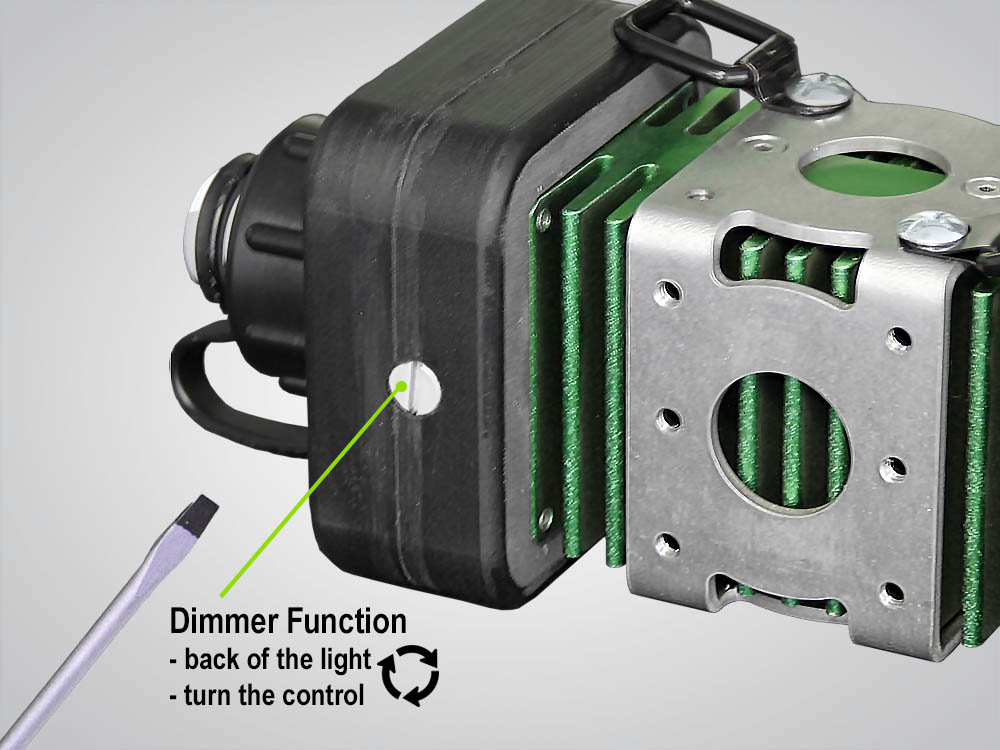

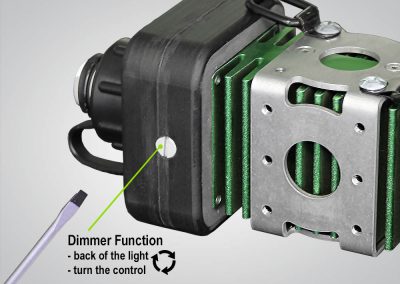

LINKaLIGHT™ Dimmer Control
Dimmer function on the back of the light, just turn the control. (It helps to use a flat head screw driver)
LINKaLIGHT™ Color-Coded Connections – BLACK to BLACK
LINKaLIGHT™ | (4400) Industrial LED String Light System has color coded end-to-end connectors to assist with proper installation (BLACK to BLACK)
LINKaLIGHT™ Color-Coded Connections – WHITE to WHITE
LINKaLIGHT™ | (4400) Industrial LED String Light System has color coded end-to-end connectors to assist with proper installation (WHITE to WHITE)
LINKaLIGHT Mounting Options
Stainless Steel Mounting brackett – with 14 positioned holes

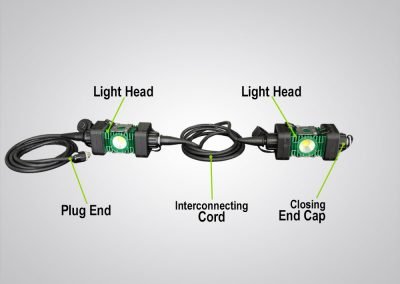

LINKaLIGHT™ full system
LINKaLIGHT™ (4400) LED Stringer Light system – showing plug end and connecting end.
A KICK-IT TOUGH™ Light
Even though the LINKaLIGHT™ is NOT explosion proof, it is still built with the same characteristics of a KICK-IT TOUGH™ light:
- RELIABILITY: As part of the KICK-IT TOUGH™ Series, the LINKaLIGHT™ is built with the same “tool-like” reliability.
- DURABILITY: The Model 4400 is machined out of solid blocks of 6061-T6 aluminum.
- QUALITY: Weatherproof electrical couplings that protect against electrical shortage.
- VERSATILITY: Protective lenses and multiple mounting options have been carefully designed to support the needs in various spaces.
- EASILY RECOGNIZABLE: The same signature “green” color
- SAFETY & PROTECTION: Secured black polyurethane bumpers for added safety and protection.
- MADE IN THE USA: As with all the lights offered in the KICK-IT TOUGH™ Series, the LINKaLIGHT™ is designed, manufactured, and serviced in the USA.
Industries & Applications
This stringer light system is for built for temporary job sites, for use in non-hazardous locations. Perfect in tunnels, tanks, silos, boilers, drydocks, airplane interiors, scaffolding installs and walkways. Crucial where rugged portable lighting is critical during construction, inspection and maintenance. Marine, industrial and aviation contractors will no longer need to settle for fragile, bulky, difficult-to-position portable lighting.
Go to our Industries & Applications page to view more examples of our lights in use.
Designed & Manufactured in the USA
*Equipment specifications, options & availability subject to change.
(Last update: Apr. 23, 2020)
For pricing and availability on the LINKaLIGHT™ portable lighting system…
Click the “Add to Quote” button above and submit a product inquiry today!
