BODYLight™
Explosion Proof Rechargeable Battery-Powered LED Light
The BODYLight™ is the 1st (ETL Certified) explosion proof, rechargeable, battery-powered LED light in the WORLD! Our first portable explosion proof LED work light without a cord.
 |  |  |  |  |
Datasheet
IMAGE GALLERY
Click to Enlarge & View Slider of Images
VIDEOS
Product Features
Additional information
| *Certified Explosion Proof under UL844 by Intertek for use in: | Class I, Div 1 & 2; Groups C & D; Light Head may be powered by with Power Supply Box for continuous use. |
|---|---|
| Suitable for Wet Location | |
| Battery Charger is Ordinary Location Listed: | UL153 – Not Explosion Proof |
| Emitter Type: | LED COD (Chip on Board) |
| Luminous Flux: | ~2500 lumens (lm) |
| Visible Modes | Light Output (Lumens): | Glow (On/Battery Check) |
| Run Time: | Glow (On/ Battery Check): N/A |
| Projection Type: | Wide Floodlight Projection |
| Dimensions: | 3.67"L x 2.97"W x 7.58"H x Ø2.67" |
| Weight: | Light head: 1.90 lbs |
| Housing/Material: | Machined out of Solid Blocks of 6061-T6 Aluminum |
| Battery-Powered: | Rechargeable, Li-Ion (Approved for Shipping) |
| Battery Pack Transportation Compliance: | The BODYLight™ Battery Pack, consisting of lithium ion cells external to the Explosion Proof Canister, was examined for conformance to UN/DOT 38.3, Transportation Testing, by Intertek Laboratories. Conformance verification to the Standard for the Battery Pack was issued on November 16, 2017. (Report No.: 103190396CRT-002) The BODYLight™ Battery Pack passed all test procedures for Altitude Simulation, Thermal Test, Vibration, Shock, External Short Circuit, and Overcharge/Discharge, ensuring its compliance and safety for air and ground transportation. Further, with the Battery Pack encased in an Explosion Proof Canister, compliant to UL 62133, 153, and 844, provides even greater assurance of safety during transportation. Dr. Michael S. Kralik |
| Battery Pack: | 41NR19/66 |
| Charger Base Input: | Frequency of Input: 120/240 VAC, 50/60 Hz, 1A |
| Charger Base Compliance: | – UL 1310 |
| UVA Option: | UVA BodyLight™ is equipped with both UVA LED Wavelength: 365nm Peak & Visible BODYLight™ modes listed above (see UVA page/datasheet for more info) |
| UVC Option: | The "WT GERM KILLER" is equipped with UVC LED Wavelength: 275nm Peak only. (see UVC page/datasheet for more info) |
| Country of origin: | Designed & Manufactured in the USA |
| *Accessories: | Flat Diffuser/Dome Diffuser |
| Part Numbers (replacement parts): | #8910 (BODYLight™) – Complete System: (1) Lighthead, (1) Rechargeable Battery, (1) Charger, & (1) Carrying Case. (1) Mounting option. #8910 NC (BODYLight™) – No Case Option: (1) Lighthead, (1) Rechargeable Battery, (1) Charger. #8109B – 12 Pack of 8109 Secondary Blast Lens. #8910 BAG – Non-Static 9 x 12 Overspray Bag (Box of 50). #8910 BATTERY – Rechargeable Auxiliary Battery for the BODYLight™ (extra/replacement). #8910 BATTERY CHARGER – Battery Charger for the BODYLight™ (extra/replacement). #8910 INVERTER – DC Power Inverter to be used with the BODYLight™. #8910 CASE – Lime Green Resin Case for the BODYLight™. #8910 CLIP – Clip Mount for the BODYLight™. #8910 DOME DIFFUSER – Dome Diffuser for the BODYLight™. #8910 DUAL BATTERY BELT PACK – 2 Battery Belt pack (manifold) for the BODYLight™. #8910 FLAT DIFFUSER – Anti-Glare (flat) Diffuser for the BODYLight™ (Sold Separately). #8910 HOOK – Hook mount for the BODYLight™. #8910 LIGHTHEAD – Lighthead only (extra/replacement). #8910 MAGNET – Magnet Mount for the BODYLight™. #8910 TRIPOD – Tripod Base for the BODYLight™. #8910 BL Harness – Body Harness: 40” (small to 40” Girth) #8910 BL Harness – Body Harness: 50” (Adult to 50” Girth) #8910 BL Harness – Body Harness: 60” (Big & Tall to 60” Girth) |
Reviews
Full Product Description
BODYLight™
Model 8910 | Explosion Proof Rechargeable Battery-Powered LED Light
The BODYLight™ is the 1st Explosion Proof Rechargeable Battery-Powered LED Light in the World to be ETL certified by an OSHA approved Nationally Recognized Testing Laboratory (NRTL) Intertek. It boast ~3.5hrs runtime with 2,500± lumens on High (task specific mode). This LED work light is more than just a flashlight, it is built for industrial services. The BODYLight™ is machined from solid blocks of 6061-T6 Aluminum for durability. They are also polyurethane wrapped with protective bumpers and glow-in-the-dark paneling for added safety.
As a member of our Explosion Proof KICK-IT TOUGH™ LED Safety Lights, it holds the same multiple certifications:
- Class I, Div 1 & 2, Groups C & D;
- Class II, Div 1 & 2, Groups E, F & G
- CSA Zones 1 & 2; Zones 20, 21 & 22
- Portable Luminaire (UL 153)
- Wet Location (NEMA TYPE 6-P)
- Low Voltage (LVLE)
With it’s white, bright light and far-reaching flood light projection, the BODYLight™ is built for a universe of applications. And with the ability to also be body mounted, it would provide the freeing of hands which is a big safety issue at many industrial work sites.
ACCESSORIES
Not every accessory is available to order online, yet. Until then, simply request the accessory name or part # in the “Additional Information” section of the Inquiry Cart page or the “Leave a Message” form on the Contact Us page.
#8910 CASE
Convenient Carrying Case for the BODYLight™
#8910 DOME DIFFUSER
Dome Diffuser for the BODYLight™
#8910 FLAT DIFFUSER
Anti-Glare (flat) Diffuser for the BODYLight™
#8910 BAG
Non-Static 9 x 12 Overspray Bag (Box of 50)
#8910 DUAL BATTERY BELT PACK
Dual Battery manifold for the BODYLight™
A-Model Power Supply for the UVA, UVC, & Original BODYLights™
#8910 INVERTER
DC Car Power Inverter for the BODYLight™
#8910B
Blast Lens for 8910, Twelve Pack (Box of 12)

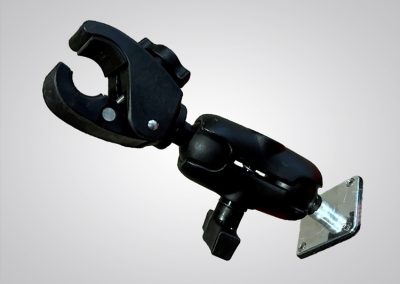

#8900 CLAMP
Articulating Clamp, 2.25” Mount. Can also be used for the UVA BODYLight.
MOUNTING OPTIONS
Strap Bars Attachment
Default mounting attachment for the BODYLight™
#8910 CLIP
Belt Clip Mount attachment for the BODYLight™
#8910 MAGNET
Magnetic Mount attachment for the BODYLight™
#8910 HOOK
Hook Mount attachment for the BODYLight™
#8910 KNUCKLE
Magnetic Knuckle Mount
#8910 TRIPOD
Tripod Base for the BODYLight™
Go to our Industries & Applications page to view more examples of our lights in use.
Designed & Manufactured in the USA
*Equipment specifications, options & availability subject to change.
(Last update: August 25, 2021)
BATTERY CHARGING BASE
BODYLight Smart Charger Base
BODYLight™ Smart Charger Base with Indicator lights (Green/Red)
BODYLight Inter-connecting charging bases
BODYLight™ Inter-connecting charging bases
BODYLight Charging Bases
Up to 40 chargers can be linked together
For pricing and availability on the BODYLight™ portable light system…
Click the “Add to Cart” button above and submit a product inquiry today!
