The BRICK®
Portable Explosion Proof LED Area Light
The most versatile, Portable Explosion Proof Area Light on the market – perfect for tank entry!
 |  |  |  |  |
 |  |  |
Datasheet
Stands & Mounts IMAGE GALLERY
Click to Enlarge & View Slider of Images
VIDEOS
Product Features
Additional information
| Approved for: | Class 1, Div 1 & 2; Groups C & D |
|---|---|
| Conforms to: | UL Stds 153, 781, 844; |
| Certified to: | CSA Stds C22.2#s 12, 25, 137 |
| Suitable for: | Wet Location Use – the BRICK®, as a Hazardous Location Luminaire, is constructed for continuous usage in Class I & II, Division 1 & 2 environments. Further, critical design tolerances ensure that each enclosure is fabricated to be dust proof and watertight. Submersion testing is taken to a depth of 100 feet in water verifying waterproof construction, which easily meets and exceeds NEMA Type 6P certification requirements. |
| Certified: | Portable Luminary (Portable Luminaire) |
| Temperature Rating: | T-Code: T5 (-20°C to +40°C); T4 (-20°C to +100°C) |
| LEDs Color: | ~6000K, CRI >70 |
| Light Output: | 50,000 Lux at 1ft; >11,500 lumens |
| Reflective Optic Beam Angle: | 60° |
| Light Head Power: | Models A and C: 36VDC, 2-3A |
| Dimensions: | Light head with Handles & Bumpers: 12¾" x 6⅛" x 5¼" |
| Weight: | 10 lbs (light head only) |
| Body Material: | Machined out of solid block of 6061-T6 Aluminum |
| Protection: | Polyurethane Bumper |
| Multiple Mounting Options: | Flexible Mechanical & Magnetic mounting (See Mounting Options) |
| Country of origin: | Designed & Manufactured in the USA |
| Additional Features: | * Variable intensity light control (Option Available) |
Full Product Description

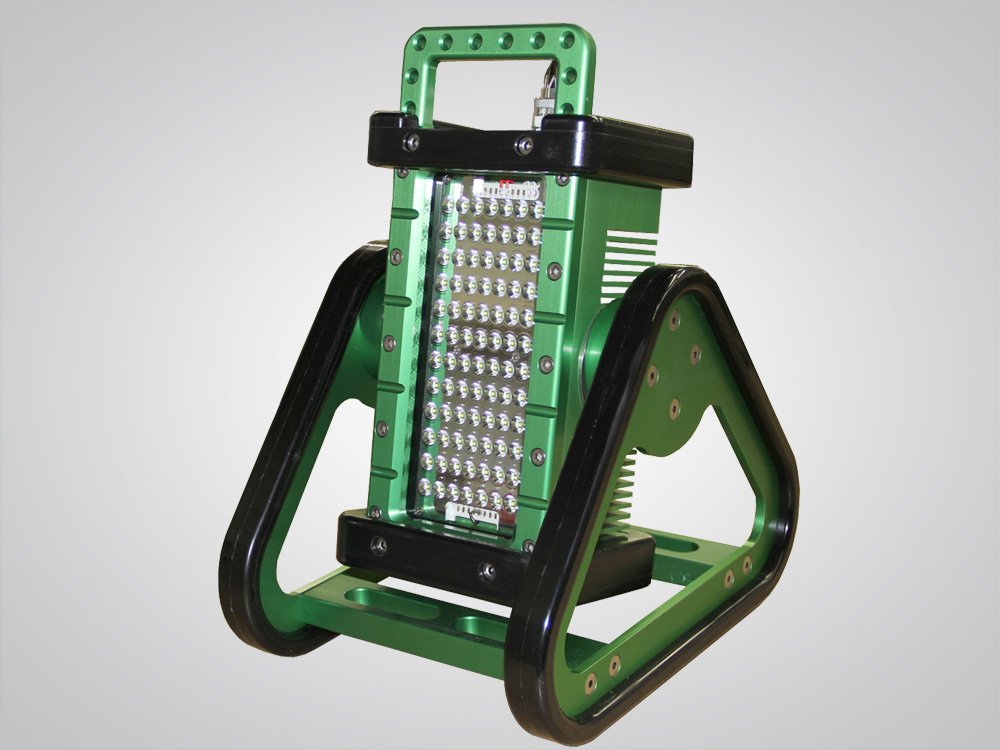

The BRICK®
Model 9610 | Portable Explosion Proof Area Light
The most versatile and rugged LED portable explosion proof area light on the market. Built for a variety of applications ranging from aviation, tank entry, power generation, refineries, and blast & paint. Built from a solid block of 6061-T6 Aluminum for durability. Variable intensity light control (dimmer switch) option available. Thermally controlled for comfortable handling.
The BRICK® is certified and approved for hazardous locations (HazLoc):
- Class I, Div 1 & 2, Groups C & D;
- Class II, Div 1 & 2, Groups E, F, & G
- CSA Zones 1 & 2; Zones 20,21 & 22
- Portable Luminaire (UL 153)
- Wet Location
- Low Voltage (LVLE)
Go to our Industries & Applications page to view more examples of our lights in use.
Designed & Manufactured in the USA
*Equipment specifications, options & availability subject to change.
(Last update: August 25, 2021)
ACCESSORIES
-

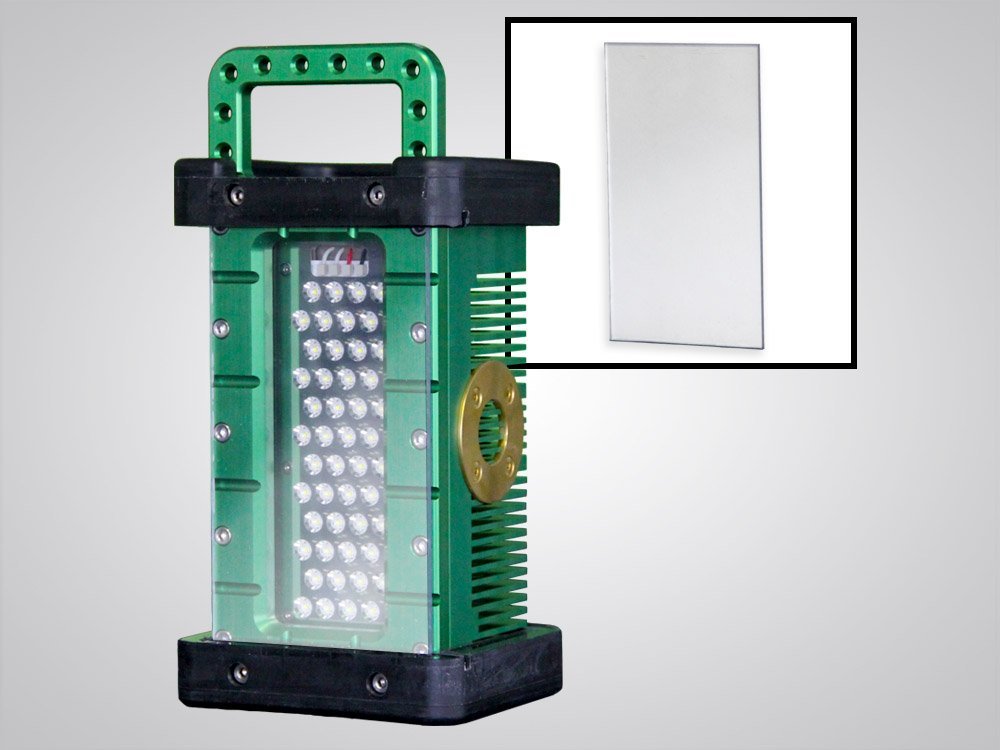

- BRICK® shown with Blast Shield
-
- #9610Roll Top AG | Anti-Glare Roll Top Diffuser
-

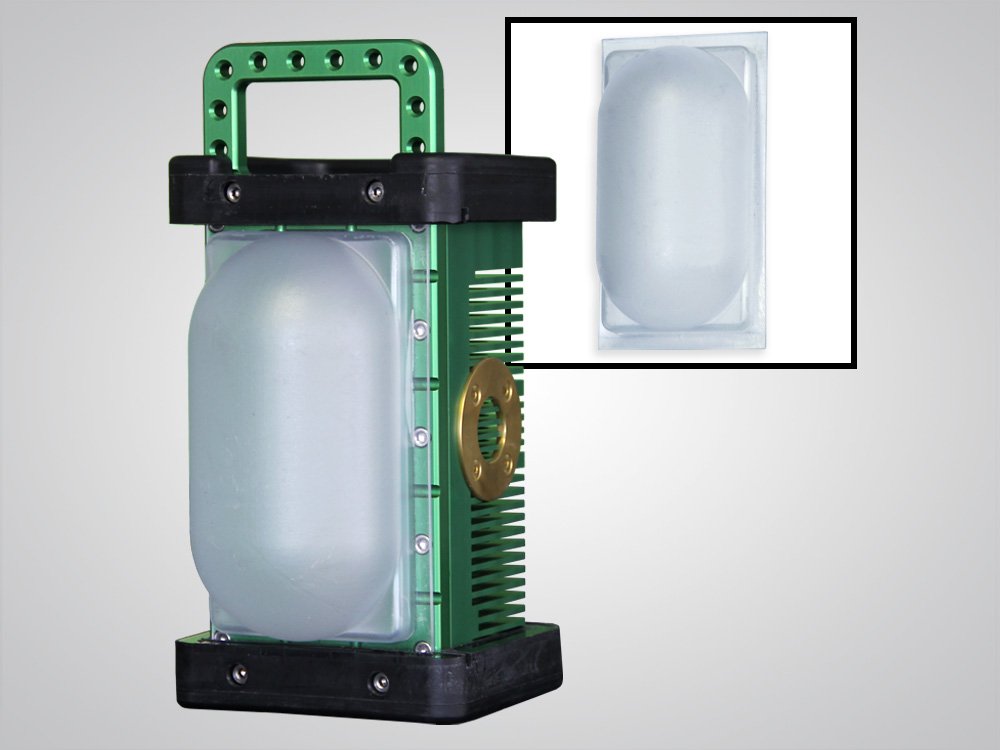

- #9610HD Diffuser 2017002 | High Dome Diffuser for all BRICK® Models
-
- #9610Body Wrap | Body Wrap for all BRICK® Models. (shown w/ High Dome Diffuser)
-

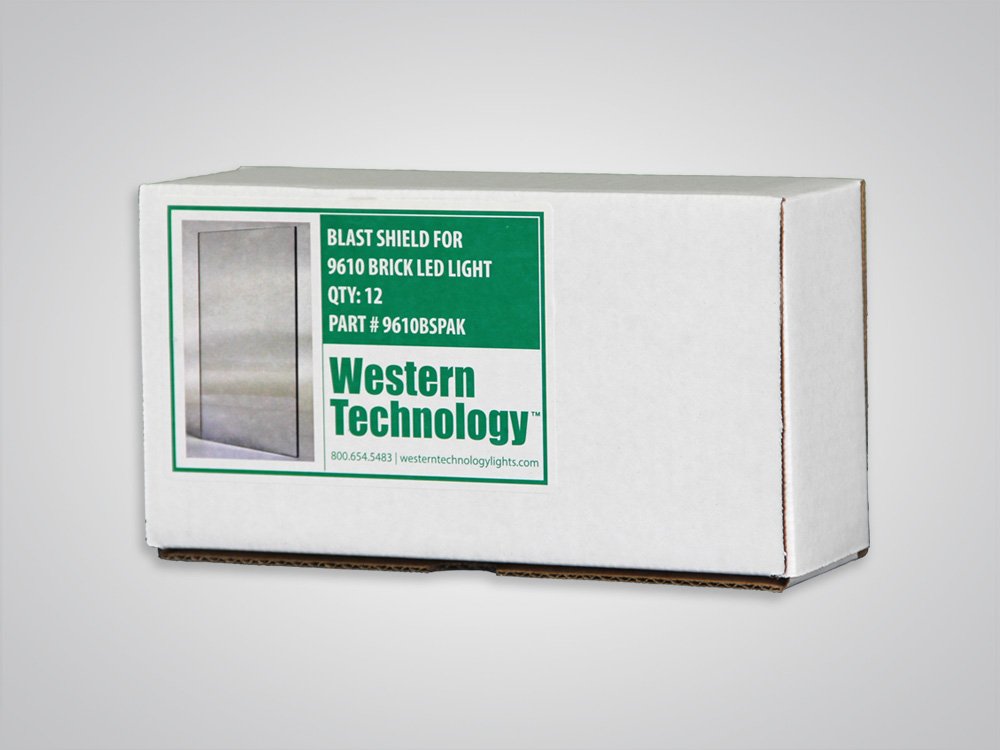

- #9610BSPAK-1 | Replacement Blast Shields (12 Pack)
-

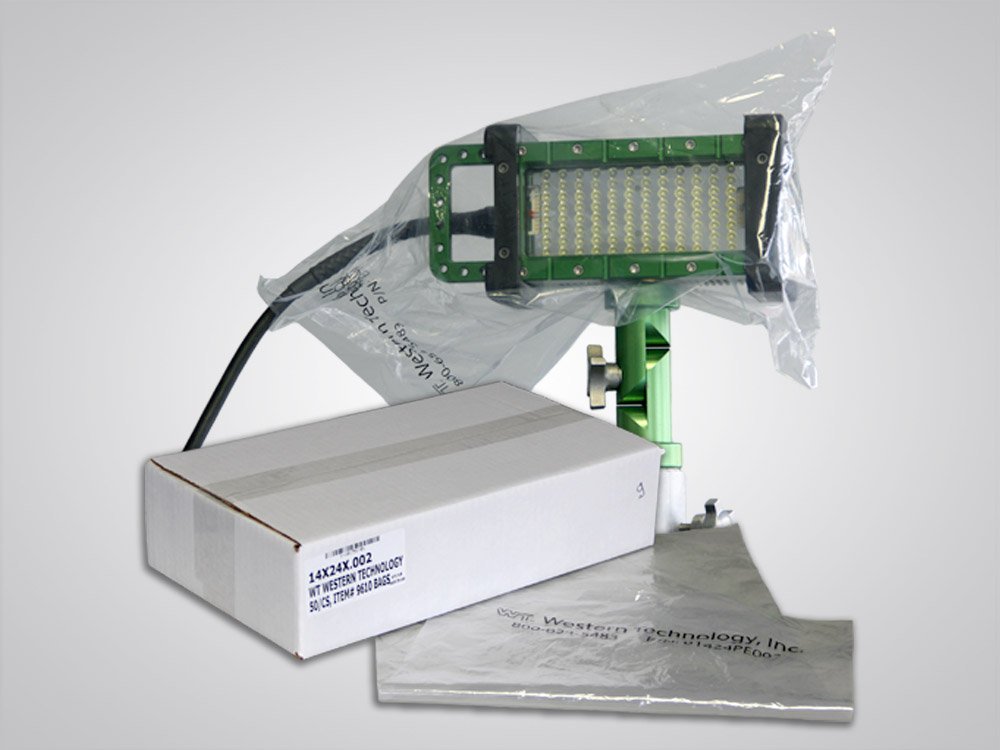

- #9610BAG | Overspray Protection Bag (Box of 50 qty)
-

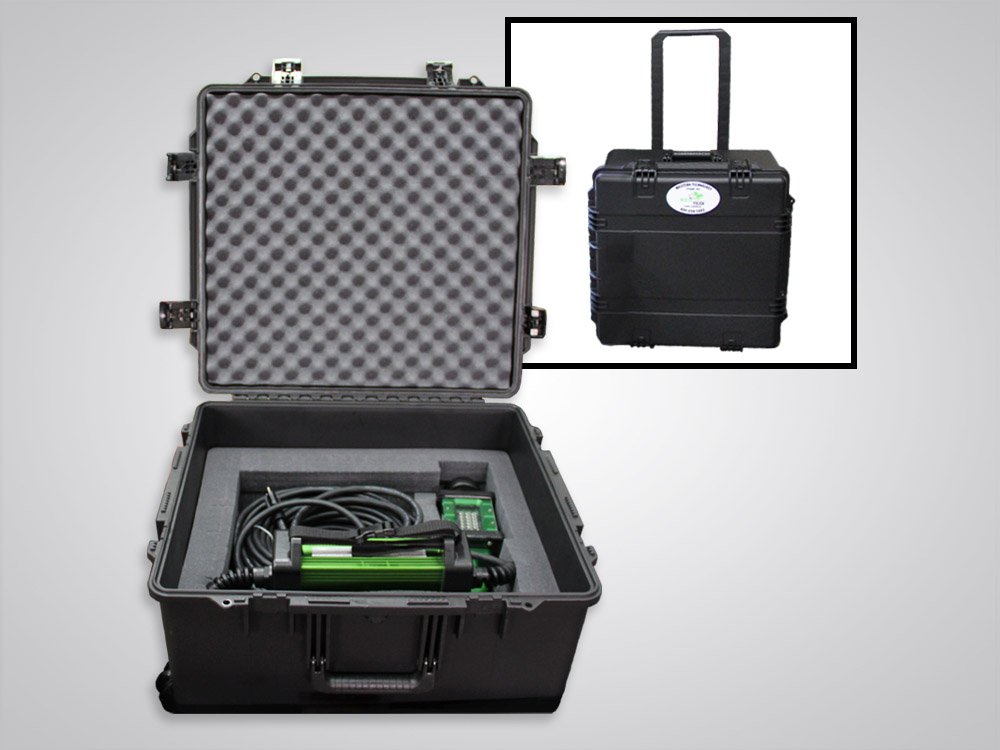

- #9610CASE | Rolling Resin Carrying Case (sold separately)
-

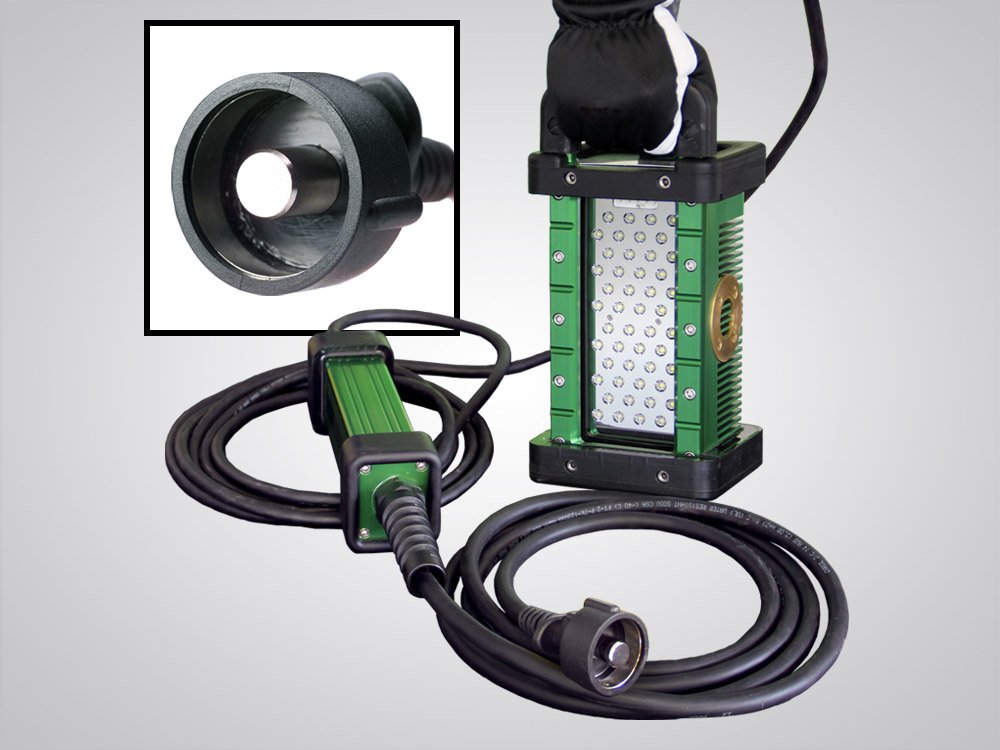

- Various Cord Lengths & Plug Options Available (shown w/ Nato plug option)
MOUNTING KNUCKLES
-

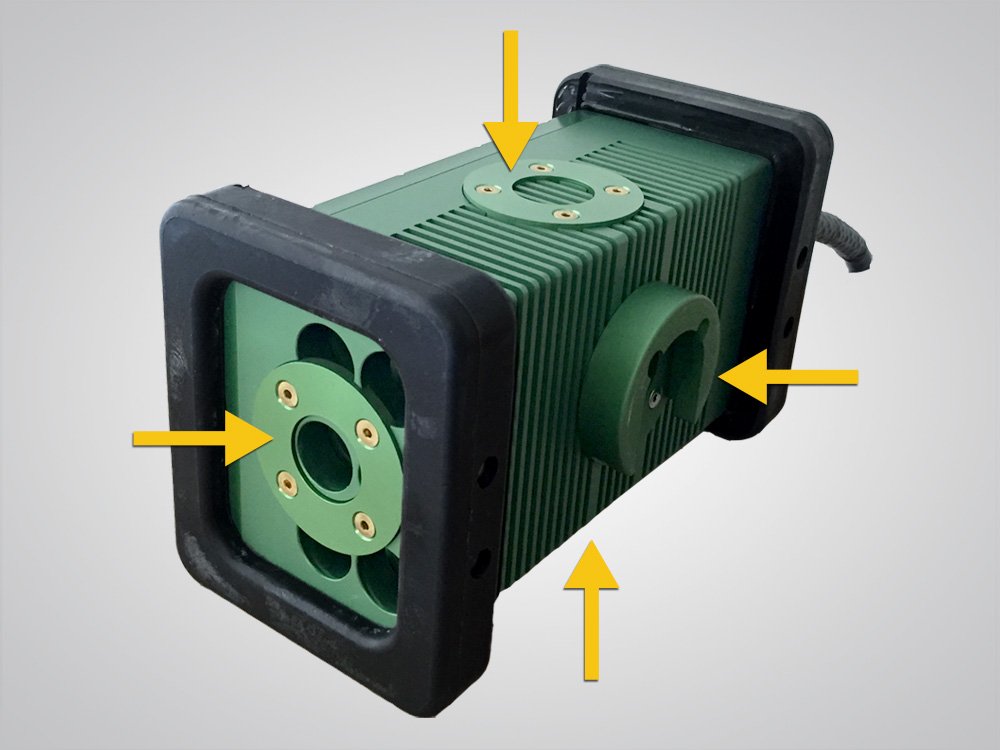

- 4 Mounting Ring Locations
-

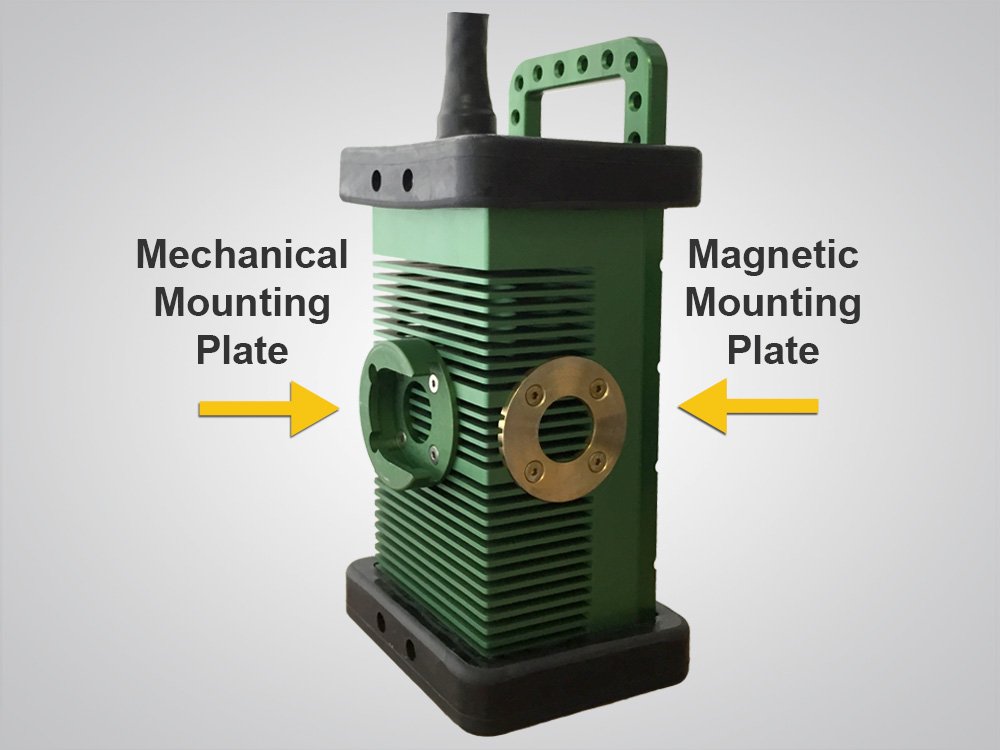

- Mechanical or Magnetic Mounting Plates
-

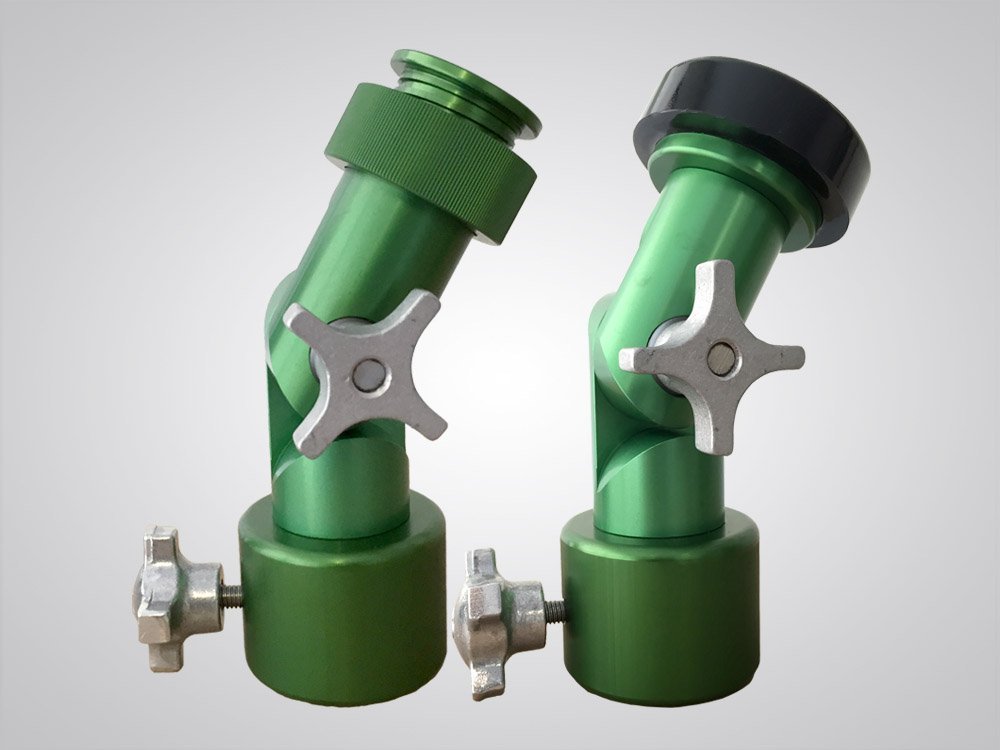

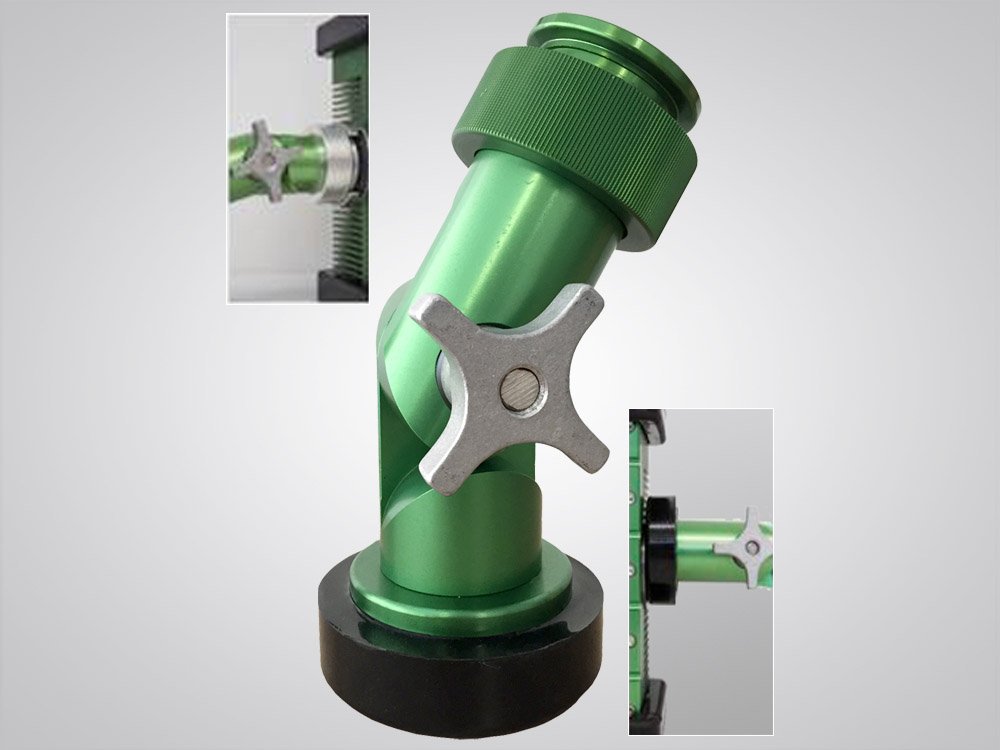

- Mechanical / Magnetic Knuckle
-

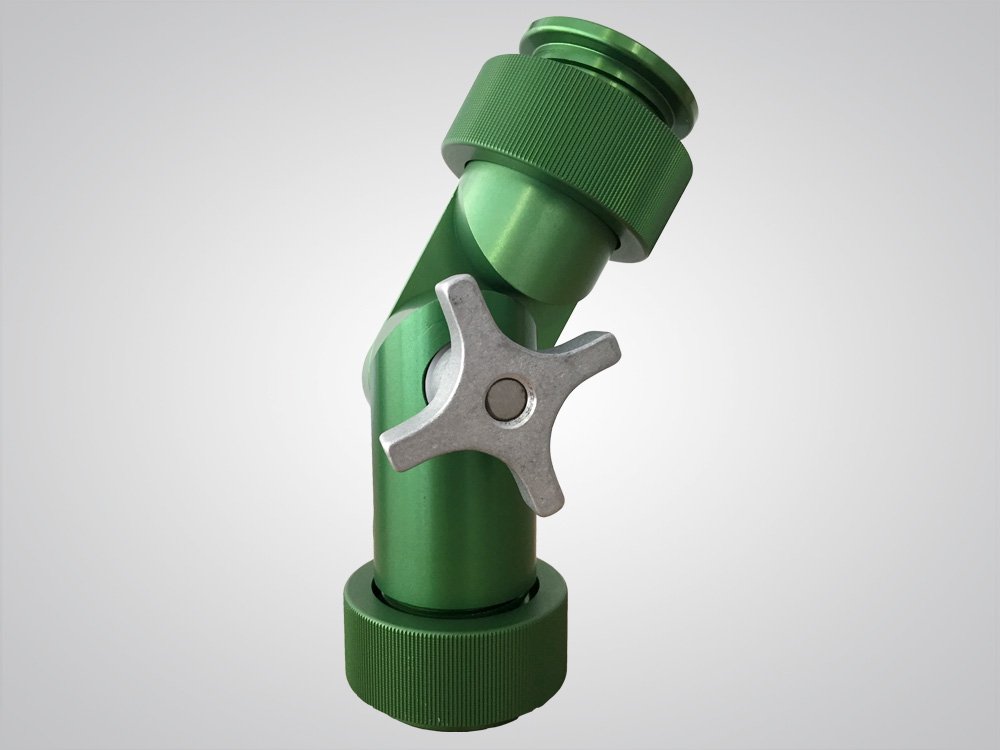

- Mechanical Knuckle
-

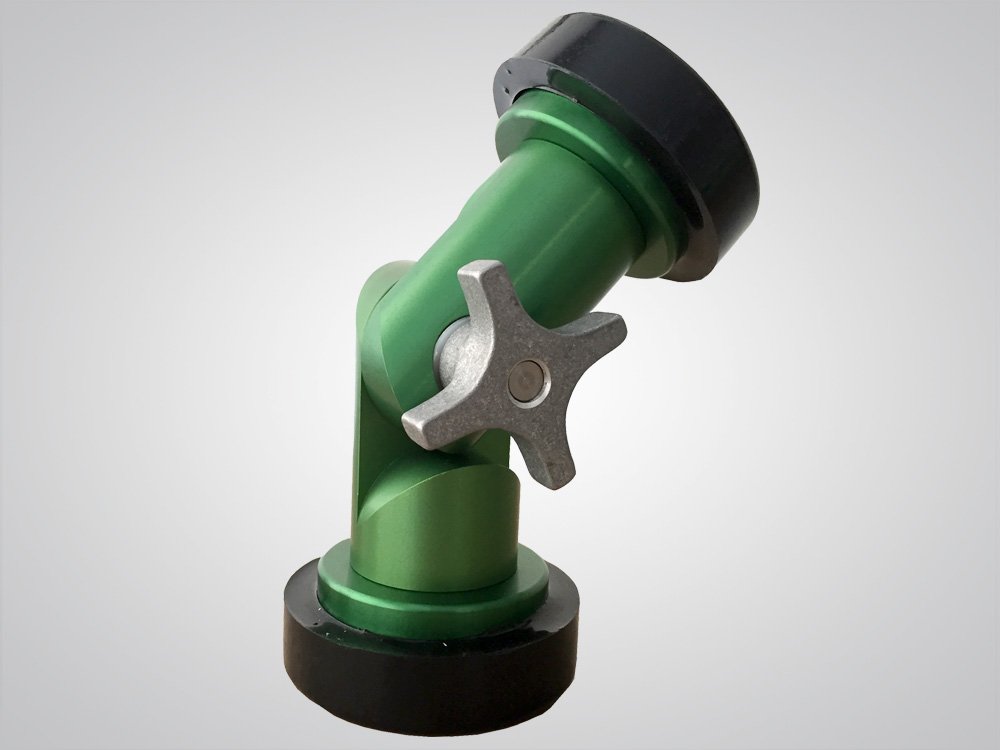

- Magnetic Knuckle
-
- Mechanical & Magnetic Knuckles – Quadpod/Handcart toppers
STANDS & MOUNTS
-

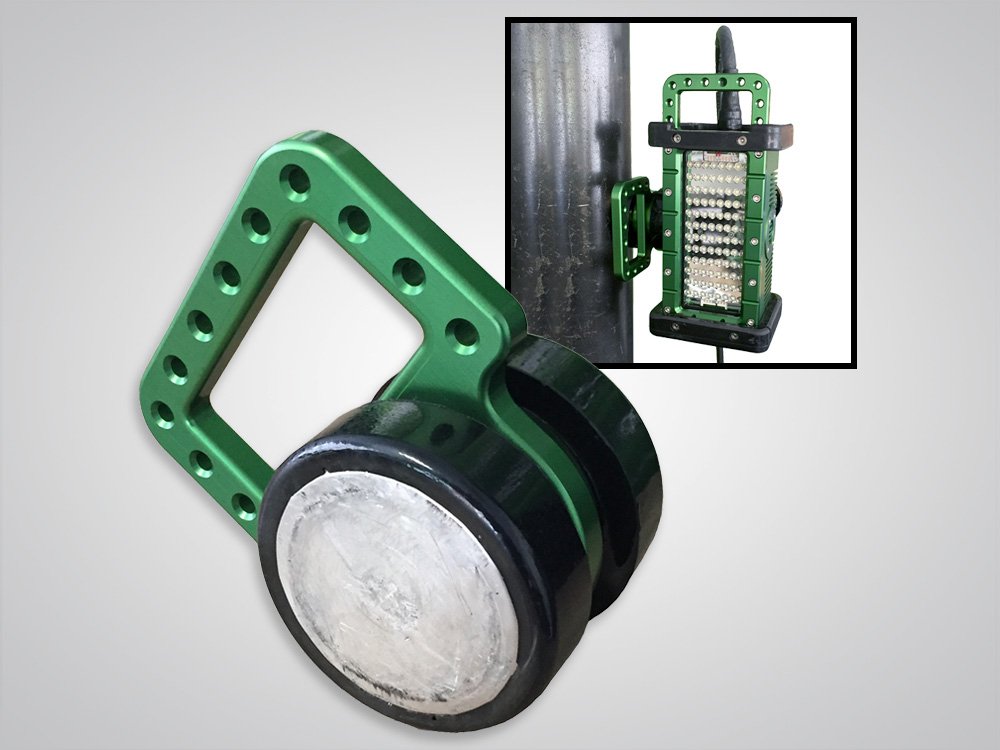

- #9610PUCKHANDLE | Magnetic Puck Mount for the BRICK®
-

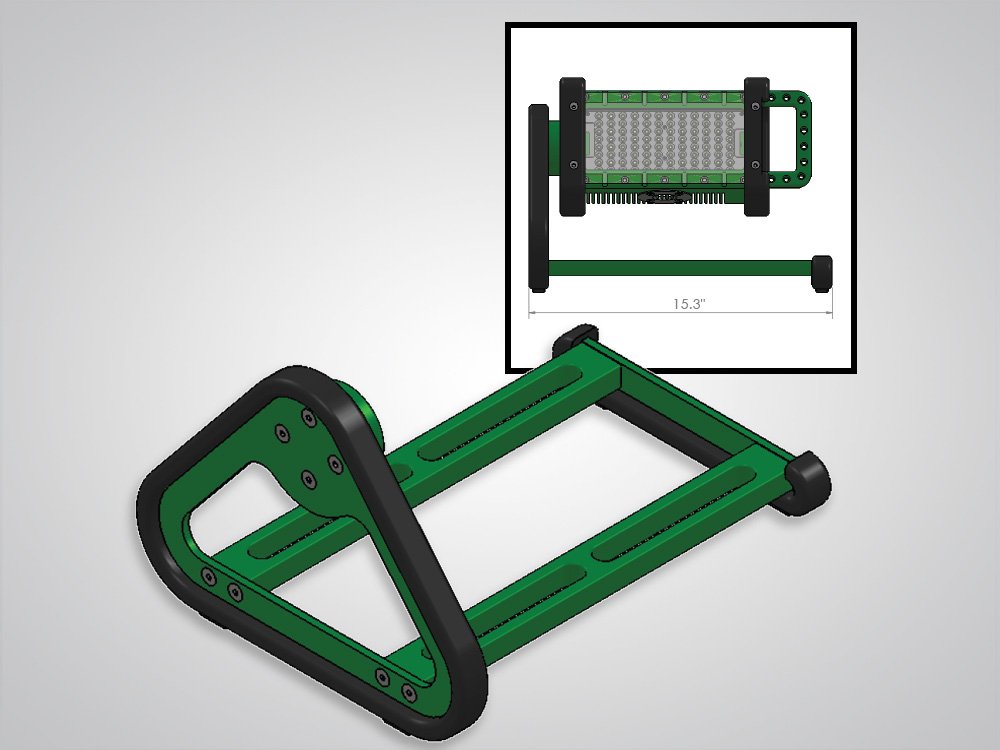

- #9610AFRAME | A-Frame mount for the BRICK®
-
- #9610MODAFRAME | Modified A-Frame mount to be used with the BRICK®
-

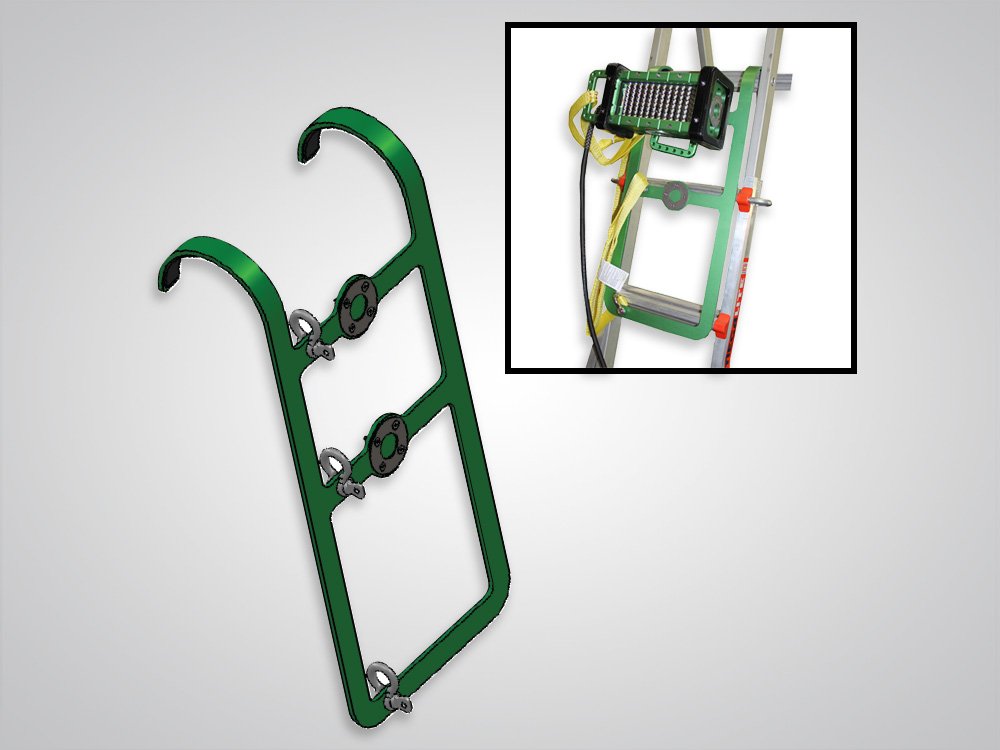

- #9610LADDER | Ladder Mount for the 9610 BRICK®
-

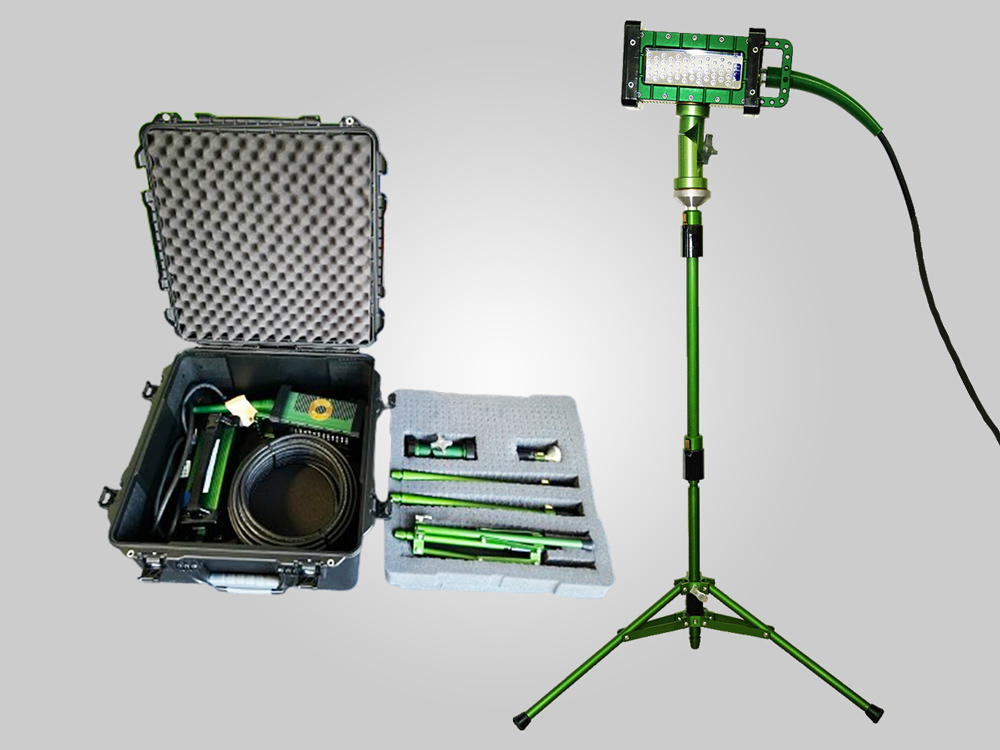

- #9610TRIPOD | Tripod Mount [Base & 22″ Riser] (shown w/ magnetic knuckle)
-

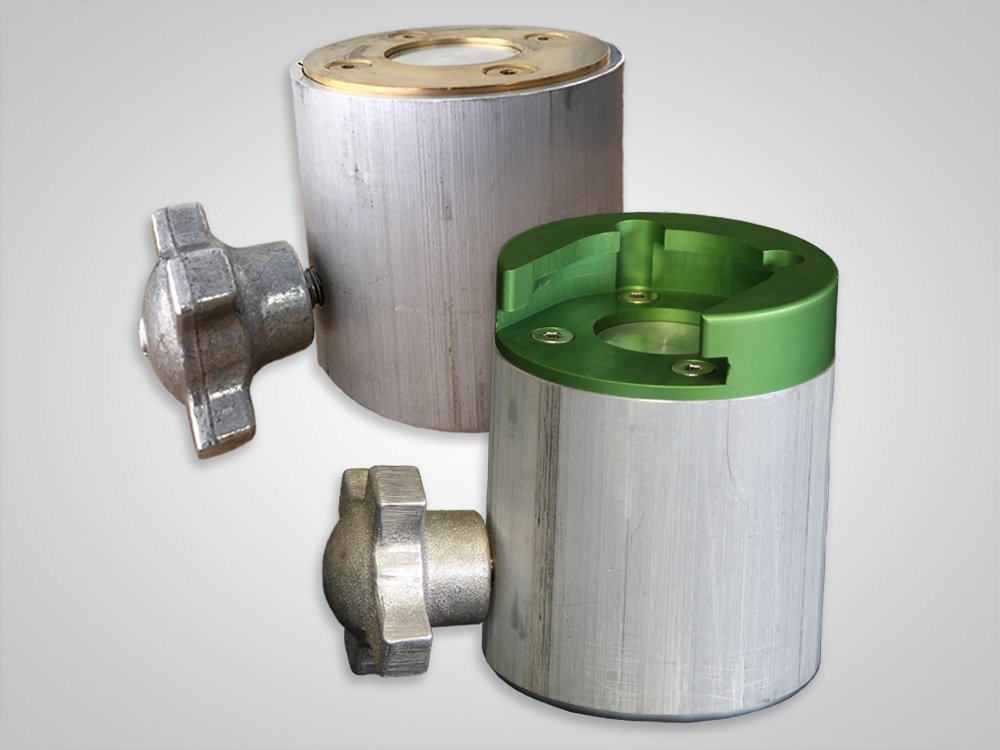

- #9610ADAPTER | QuadPod/Hand Cart Toppers (Mechanical & Magnetic)
-

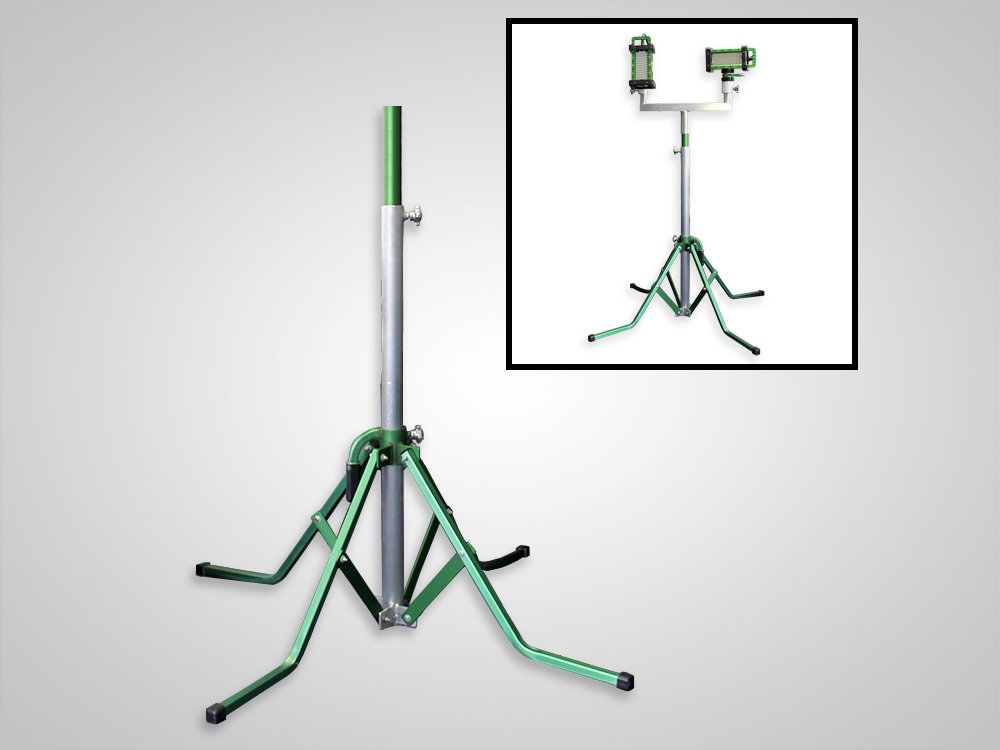

- #6300QUADPOD | Quadpod Mount for the BRICK®
-

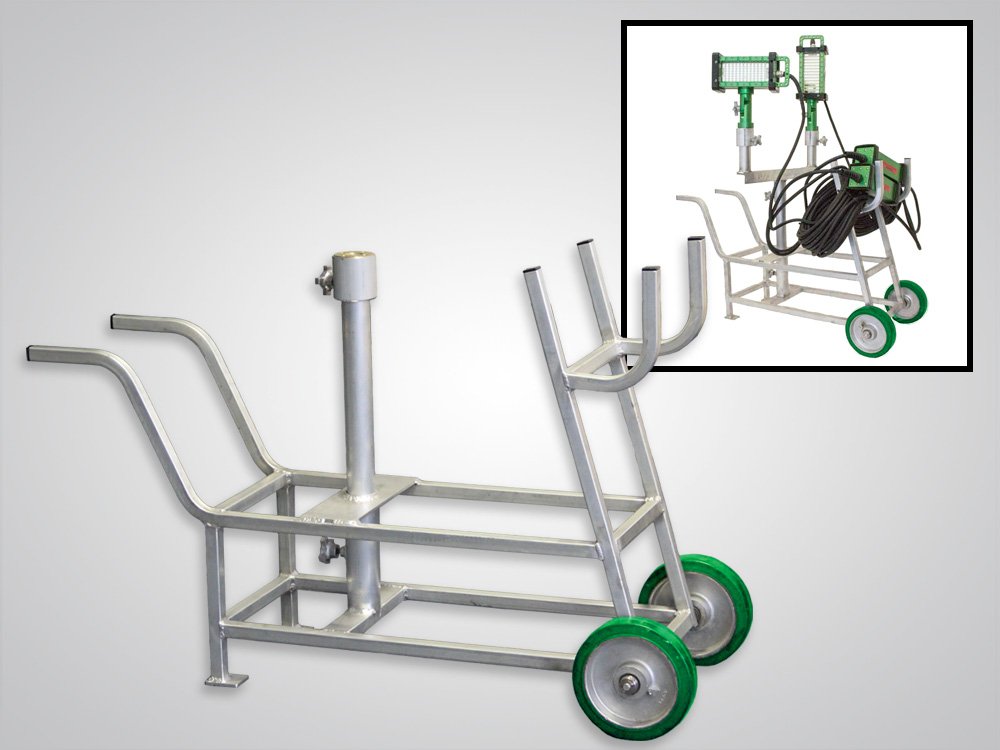

- #6300CART | Hand Cart Mount for the BRICK®
-
- BRICK Cart™ | Portable Light Cart (2 BRICKs) – for flightline application
-

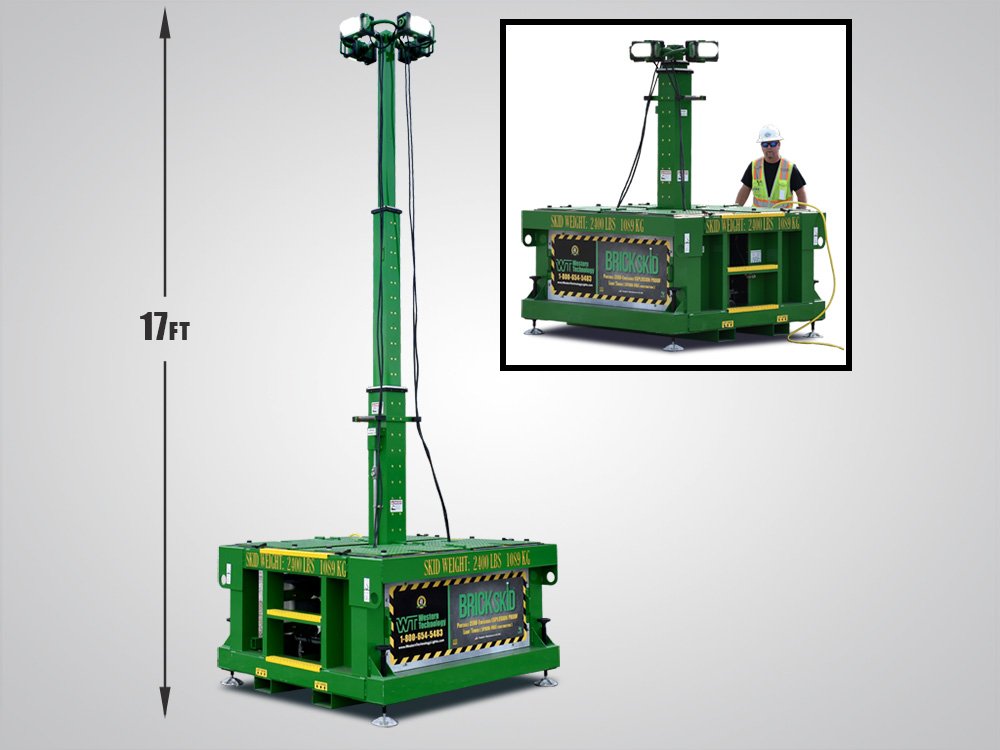

- BRICKSkid™ | ZERO-Emissions Portable Explosion Proof Light Tower
VARIABLE CONTROL OPTION
-
- Non-Explosion Proof Variable Control Power Box for the A-Model BRICK® & BRICKette™ (optional dimmer switch)
-
- Explosion Proof Variable Control Power Box for the C-Model BRICK® & BRICKette™ (optional dimmer switch)
GEN 3 FEATURES

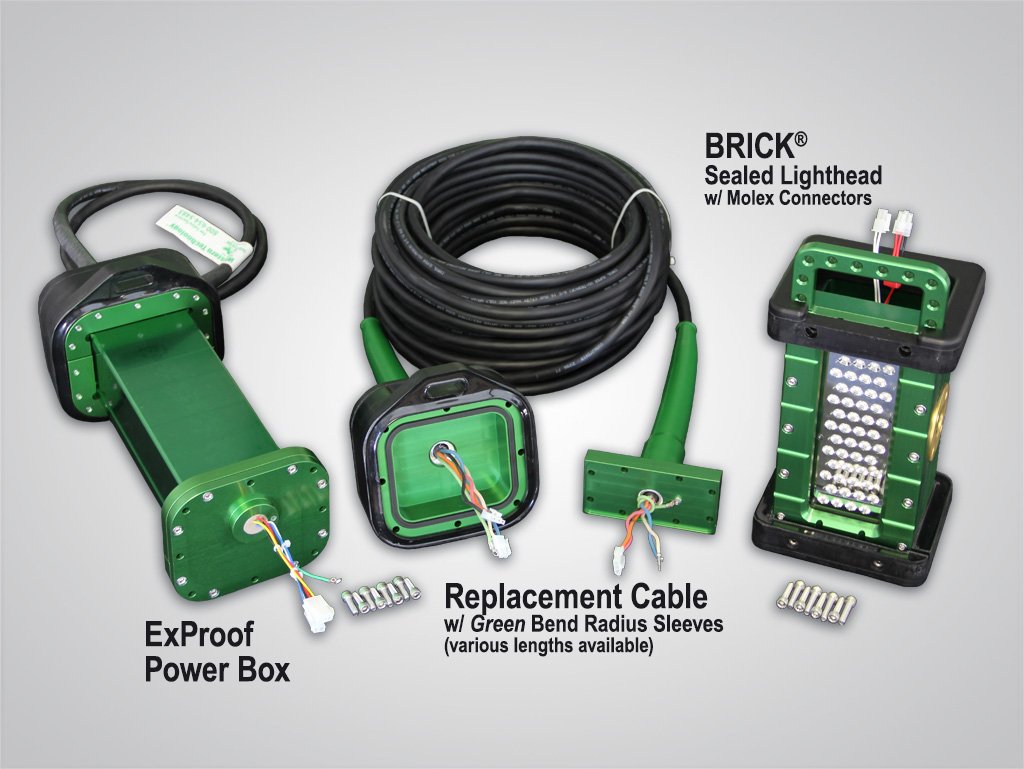

The Gen3, BRICK® is now built with “on-site” cable replacement features. Its distinguishing feature is the green Bend Radius Sleeve (*Patent Pending) on the the cable connection points. Replacement pieces include the power supply box, the cable, and the lighthead. Repair tool kit is also available for purchase (sold separately).
Gen3 now available with “on-site” cable replacement kit. Replacement pieces include the power supply box, the replacement cable, and the lighthead.
#9610 CABLE REPLACEMENT TOOL KIT, comes in convenient carry case… Go to Product
A-MODEL or C-MODEL
(SELECT AN OPTION)
#9610C | C-Model BRICK® :: Explosion Proof Lighthead, 100′ SOOW Cable, Explosion Proof Power Box, Explosion Proof Plug (Various Cord Lengths available) … Go To Product
For pricing and availability on the BRICK® portable light system…
Click the “Add to Cart” button above and submit a product inquiry today!
