Detect cracks, leaks, FOD, microscopic holes & defects with the UVA BODYLight™. Easily switch from 2500 lumen visible LED mode to the UVA mode and back again.

hazardous location lights, product category, class 1 div 1, portable work lights from Western Technology, explosion proof lights, intrinsically safe lightsexplosion proof Lights, portable explosion proof lights, products, product categories, explosion proof, lighting, icon, Western TechnologyOur Brands, KICK-IT TOUGH™ LED Safety Lights, KICK-IT TOUGH™ Series, led safety lights, portable explosion proof led work lightsETL Listed & Certifieddesigned & manufactured in the usa, manufactured in the usa

Datasheet

IMAGE GALLERY

Click to Enlarge & View Slider of Images

VIDEOS

Product Features

Additional information

*Certified Explosion Proof under UL844 by Intertek for use in:

Class I, Div 1 & 2; Groups C & D;
Class II, Div 1 & 2; Groups E, F, & G;
CSA Zones 1 & 2; Zones 20, 21, & 22
* Approved for Light Head, Battery Pack, & Manifold

Light Head may be powered with a Power Supply Box for continuous use:
– Line Power to Supply Box: 100-277VAC;
– Output: 48VDC, 8A max

Suitable for Wet Location

Battery Charger is Ordinary Location Listed:

UL153 – Not Explosion Proof

Visible (White Light) Mode | Emitter Type:

LED COB (Chip on Board)
– Correlated Color Temperature (CCT): 5700°K

Visible (White Light) Mode | Light Output (Lumens):

Glow (On/ Battery Check)
Low (Passage): 625 lm
Medium (Work): 1,250 lm
High (Task): 2,500 lm
Flashing: (Medium-Low)

Visible (White Light) Mode | Run Time:

Glow (On/ Battery Check): N/A
Low (Passage): ~14 hrs
Medium (Work): ~7 hrs
High (Task): ~3.5 hrs
Flashing (Medium-Low): N/A

Projection Type:

Wide Floodlight Projection

UVA Mode | Emitter Type:

UVA Wavelength: 365nm peak

UVA Mode | Output Modes:

Glow (On/ Battery Check)
Low (Passage)
Medium (Work)
High (Task)

UVA Mode | Run Time:

Glow (On/ Battery Check): N/A
Low (Passage): ~14 hrs
Medium (Work): ~7 hrs
High (Task): ~3.5 hrs

UVA Activation Code:

May be programmed with a code to activate/deactivate UVA function

Housing/Material:

Machined out of Solid Blocks of 6061-T6 Aluminum
Polyurethane Bumper (PURPLE)

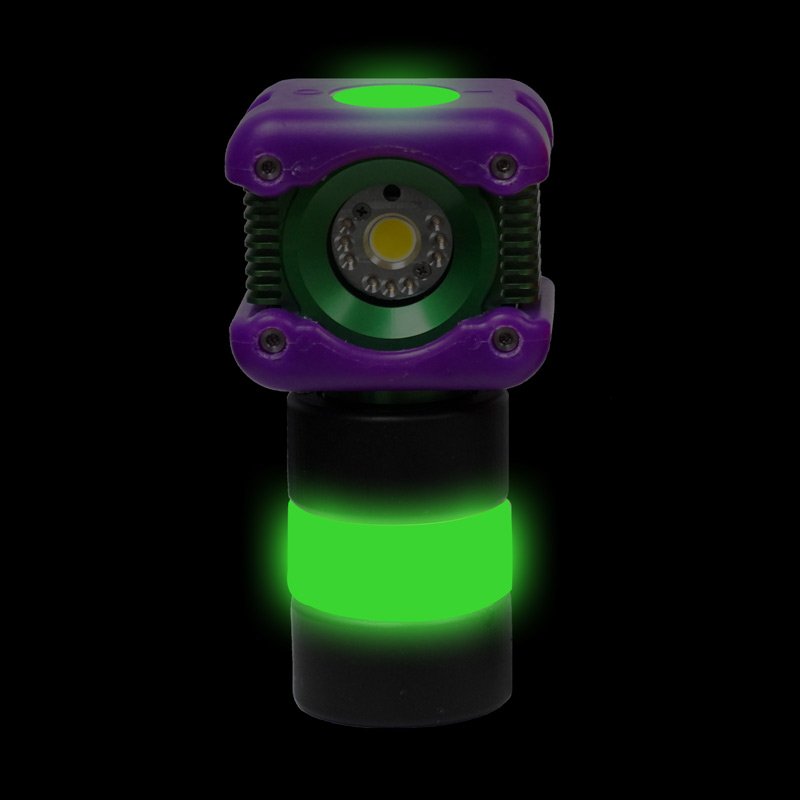

Glow-in-the-Dark Paneling

Dimensions:

3.67"L x 2.97"W x 7.58"H x Ø2.67"

Weight:

Light head: 1.90lbs
Battery/Handle: 1.45lbs
Total Weight: 3.35lbs

Battery-Powered:

Rechargeable , Li-ion (Approved for Shipping)
Smart Charger Base (Auto-Off at full charge w/ indicator light)
Recharging Time: ~2.5 hrs

Battery Pack Transportation Compliance:

The BODYLight™ Battery Pack, consisting of lithium ion cells external to the Explosion Proof Canister, was examined for conformance to UN/DOT 38.3, Transportation Testing, by Intertek Laboratories. Conformance verification to the Standard for the Battery Pack was issued on November 16, 2017. (Report No.: 103190396CRT-002)

The BODYLight™ Battery Pack passed all test procedures for Altitude Simulation, Thermal Test, Vibration, Shock, External Short Circuit, and Overcharge/Discharge, ensuring its compliance and safety for air and ground transportation.

Further, with the Battery Pack encased in an Explosion Proof Canister, compliant to UL 62133, 153, and 844, provides even greater assurance of safety during transportation.

Dr. Michael S. Kralik
Western Technology
Engineering Director

Battery Pack:

41NR19/66
Output Power: 14.4 VDC, 3.4Ah
Temp Amb: -20° to +40°C. Temp. Rating: T5
Charging: Ta: 0° to +60°C

Charger Base Input:

Frequency of Input: 120/240 VAC, 50/60 Hz, 1A
Output Power: 12-15VDC, 3-5A
Temp Ambient: -25° to +40°C
Temp Rating: T5

Charger Base Compliance:

– UL 1310
– CSA C22.2#223
certification testing for Class 2 Power Units.

*Accessories:

Flat Diffuser/Dome Diffuser
Hanging Hook attachment

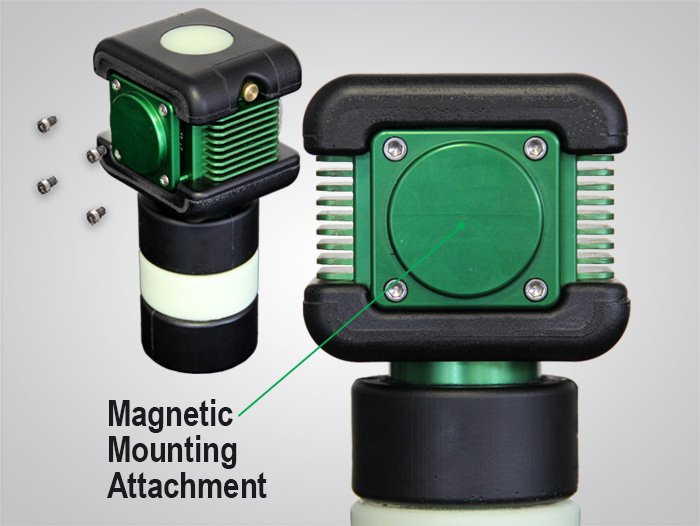

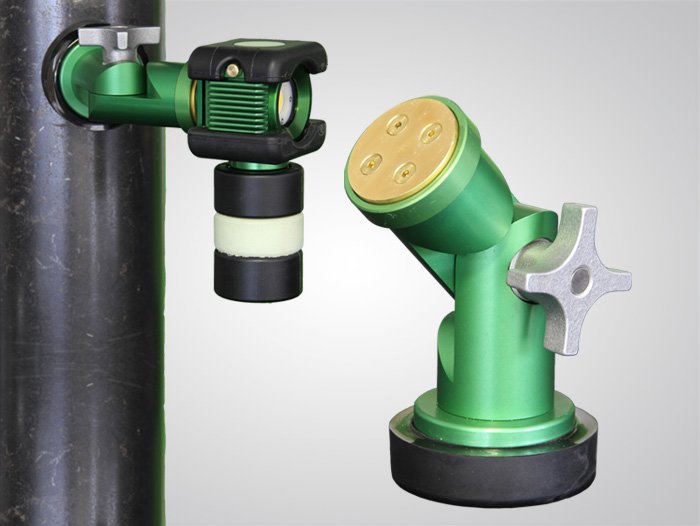

Magnet Mounting attachment

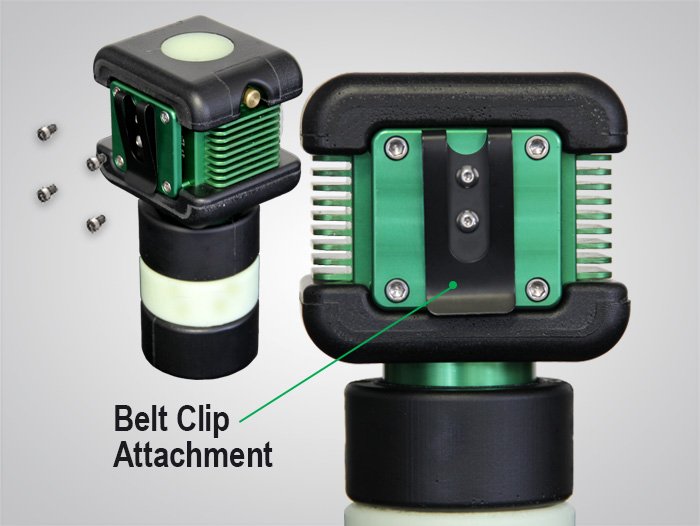

Belt Clip attachment

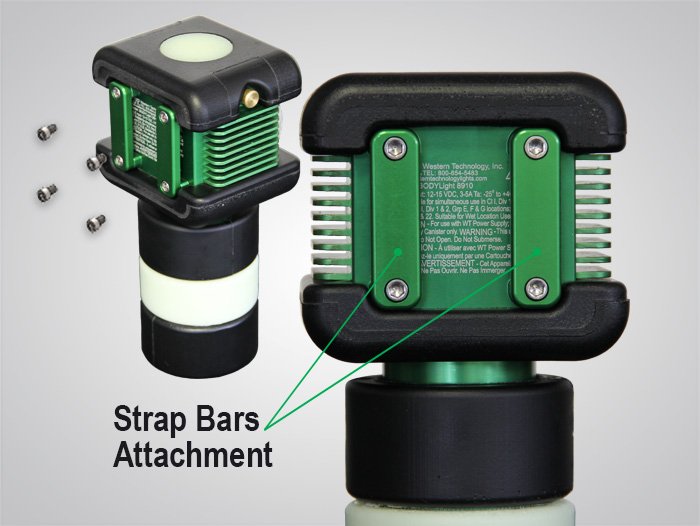

Strap Bars attachments

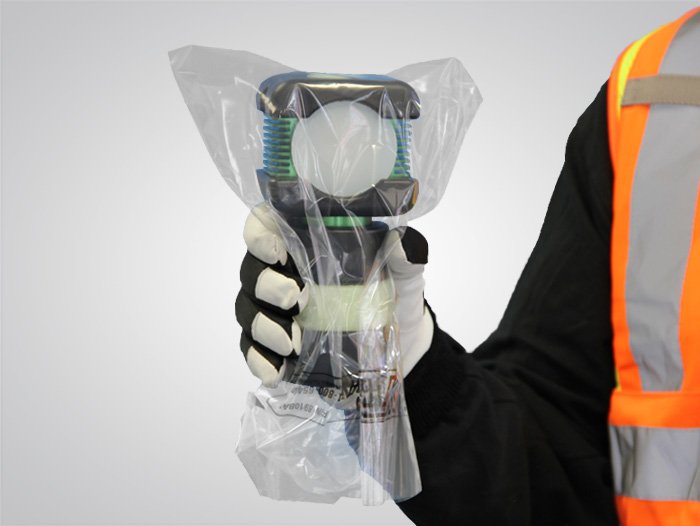

Overspray Protection Bags
2 Battery Manifold
DC Power Inverter
Hands-Free Body Strap

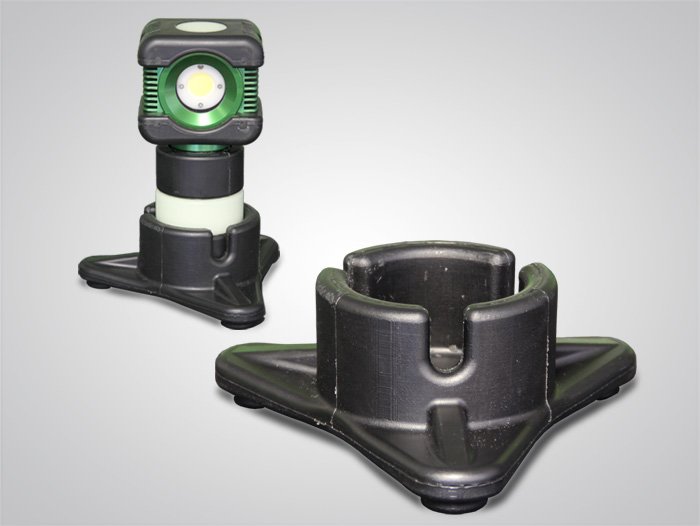

Tripod Base
* Equipment specifications, options & availability subject to change

Part Numbers (replacement parts):

#8910 (BODYLight™) – Complete System: (1) Lighthead, (1) Rechargeable Battery, (1) Charger, & (1) Carrying Case. (1) Mounting option.
#8910 NC (BODYLight™) – No Case Option: (1) Lighthead, (1) Rechargeable Battery, (1) Charger.
#8109B – 12 Pack of 8109 Secondary Blast Lens.
#8910 BAG – Non-Static 9 x 12 Overspray Bag (Box of 50).
#8910 BATTERY – Rechargeable Auxiliary Battery for the BODYLight™ (extra/replacement).
#8910 BATTERY CHARGER – Battery Charger for the BODYLight™ (extra/replacement).
#8910 INVERTER – DC Power Inverter to be used with the BODYLight™

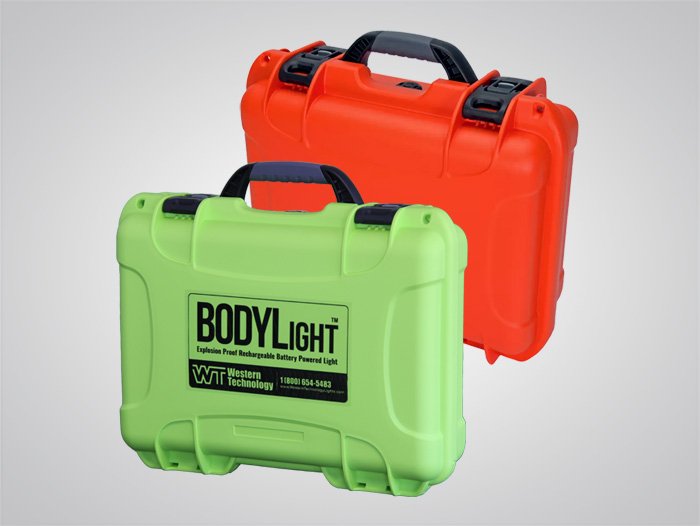

#8910 CASE – Lime Green Resin Case for the BODYLight™.

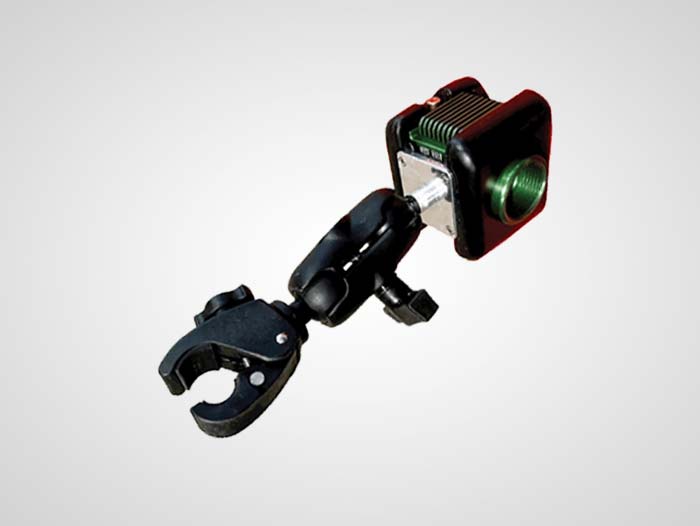

#8910 CLIP – Clip Mount for the BODYLight™.
#8910 DOME DIFFUSER – Dome Diffuser for the BODYLight™.
#8910 DUAL BATTERY BELT PACK – 2 Battery Belt pack (manifold) for the BODYLight™.

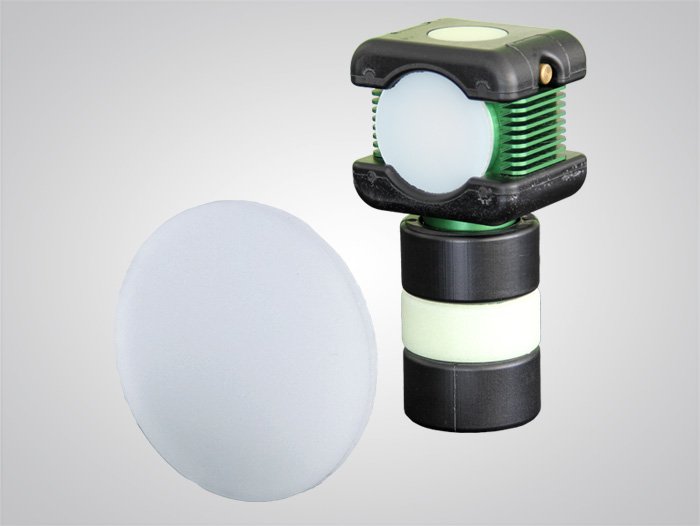

#8910 FLAT DIFFUSER – Anti-Glare (flat) Diffuser for the BODYLight™ (Sold Separately).

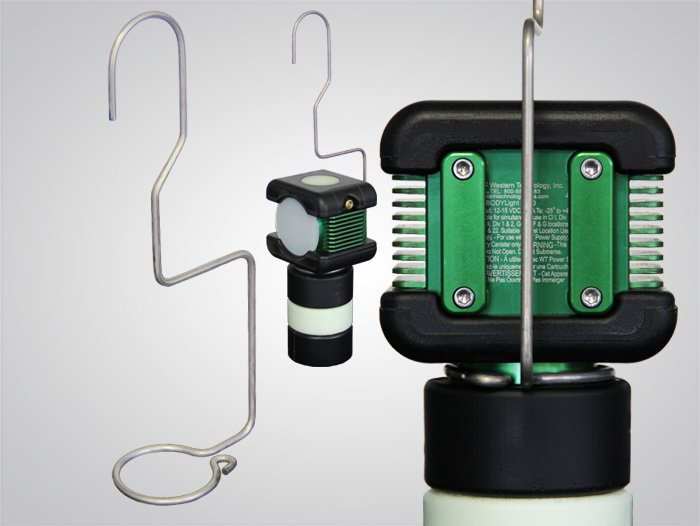

#8910 HOOK – Hook mount for the BODYLight™.
#8910 LIGHTHEAD – Lighthead only (extra/replacement).

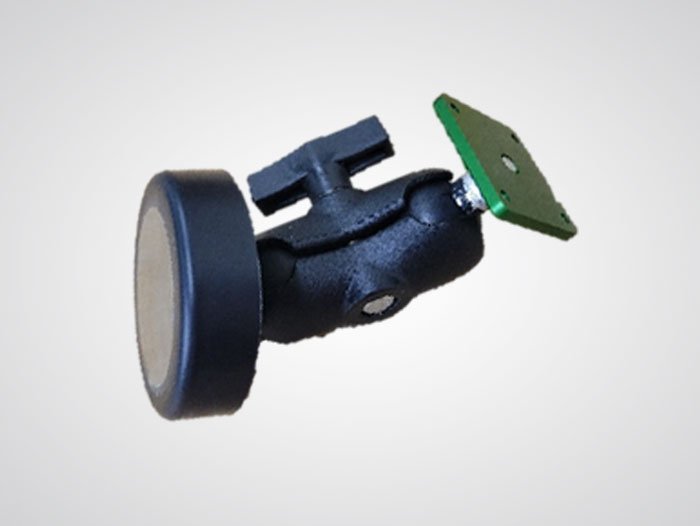

#8910 MAGNET – Magnet Mount for the BODYLight™.
#8910 TRIPOD – Tripod Base for the BODYLight™.
#8910 BL Harness – Body Harness: 40” (small to 40” Girth)
#8910 BL Harness – Body Harness: 50” (Adult to 50” Girth)
#8910 BL Harness – Body Harness: 60” (Big & Tall to 60” Girth)

Country of origin:

Designed & Manufactured in the USA

Reviews

Full Product Description

UVA BODYLight

Model 8910UVA | Explosion Proof UVA Inspection Light (Rechargeable & Battery-Powered)


The UVA BODYLight is probably the most durable and portable UVA inspection light in the world today. Built tough for any “heavy duty” environment. Tested & dropped multiple times from 20ft and it will still works! In a tough environment such as non-destructive testing, you want the best NDT equipment possible to avoid disruptions.

Our industrial UVA lighting is certified to construction requirements under UL 844 for usage in Class I & II, Division 1 & 2 explosion proof environments. Further, the 365nm UV emission from this version of the BODYLight™ is compliant with standards ASTM E3022, ASTM E1444, ISO 3059, and Rolls-Royce RRES 90061. Great for NDI / NDT testing & inspections. Common applications include aeronautical, marine and industrial maintenance and manufacturing inspections. Detect cracks, leaks, FOD, microscopic holes & defects.

This portable UVA inspection light supports normal visible light operation as well. With simple push button activation, you can easily switch from the 2500 Lumen LED mode to the UVA mode and back again.

Superior reliability and performance in both modes. Owner may order special “code” allowing only trained operator to switch into UVA mode. Code will be available in “Light Emission Report” accompanying sale of every UVA BODYLight.

Note: UVA option requires operator wear PPE and confirmation required training has been completed.
UVA 365nm can be hazardous to human health with extended unprotected exposure.

UVA 365nm for NDT

Non Destructive Testing (NDT, NDI, or NDE)

From a fuel perspective, diesel fuel, gasoline, jet fuel, lubricants, hydraulics, tars, asphalts, etc. contain PAH’s or polycyclic aromatic hydrocarbons. These PAH’s have a specific fluorescence signature that is excited by our UVA emission. So, if there is a leak, the UVA will illuminate the primary leakage location.

In some cases, a fluorescent additive is doped into a paint or liquid for use in helping to detect a crack or leak in a tank, as an example. Wherever seepage occurs, the fluorescent illuminance will be detected outside of the tank. Microscopic holes are detected this way. There are many other applications including wire identification and paint holiday detection, etc.

scroll up, iconFor pricing and availability on the UVA BODYLight
Click the “Add to Cart” button above and submit a product inquiry today!

Go to our Industries & Applications page to view more examples of our lights in use.

American Flag, designed & manufactured in the USA Designed & Manufactured in the USA

*Equipment specifications, options & availability subject to change.
(Last update: August 25, 2021)
