WT GERM KILLER® – UVC BODYLight

Portable Deep UVC Sterilizer

Using Ultraviolet Germicidal Irradiation Technology

Our Brands, kick-it tough, led safety lights, KICK-IT TOUGH™ LED Safety Lights, KICK-IT TOUGH™ Series, portable explosion proof lights, abrasive blast light, portable led work lights
wt-germ killer, wt germ killer, germ killer, UV, UVC, BODYLight™, uvc body light, UVC BODYLight, uvc rechargeable battery-powered LED light, rechargeable, battery-powered, portable, explosion proof, led, light, area light, flashlight, kick-it tough, led safety lights, explosion proof rechargeable battery-powered light, explosion proof rechargeable battery-powered led light, portable LED work light, germicidal disinfectant, sanitizer

Kills Germs
& Viruses
almost immediately
(when held 4-inches from a hard surface)

A different kind of “safety” light to address the current pandemic situation, our industrial portable UVC germicidal light, the WT GERM KILLER® – UVC BODYLight. Kills germs & viruses almost immediately (when held 4-inches from a hard surface).

uvc germ killer series, category, product category, ultraviolet germicidal irradiation, uvgiexplosion proof Lights, portable explosion proof lights, products, product categories, explosion proof, lighting, icon, Western TechnologyOur Brands, KICK-IT TOUGH™ LED Safety Lights, KICK-IT TOUGH™ SeriesETL listed, ETL certified, intertek, US, Canada, NRTLdesigned & manufactured in the usa, manufactured in the usa

Datasheet ROI/Emission Sheets


IMAGE GALLERY

Click to Enlarge & View Slider of Images

VIDEOS

Product Features

Additional information

*Certified Explosion Proof under UL844 by Intertek for use in:

Class I, Div 1 & 2, Groups C & D;
Class II, Div 1 & 2, Groups E, F, & G;
CSA Zones 1 & 2; Zones 20, 21, & 22
* Approved for Light Head, Battery Pack, & Manifold

Lighthead may be powered with a power supply box for continuous use.
– Line Power to Supply Box; 100-277VAC;
– Output: 48VDC, 8A max

Suitable for Wet Location

Runtime:

on Charged Battery-Pack: ~4hrs

Battery Charger is Ordinary Location listed:

UL153 – Not Explosion Proof

Emitter Type:

UVC LED Wavelength: 275nm peak
Red: UVC Emission – Indicator LEDs

UVC Output Power:

at Window Face: ~260 mW/cm²
at Bristle Cone: ~2.5 mW/cm²

Beam Angle:

with Bristle Cone: 60°
without Bristle Cone: 120°

UVC Activation Code:

May be programmed with a code to activate/ deactivate UVC function.

Dimensions:

3.67"L x 2.97"W x 7.58"H x Ø2.67"

Weight:

Light head: 1.90lbs
Battery/Handle: 1.45lbs
Total Weight: 3.35lbs

Housing/Material:

Machined out of Solid Blocks of 6061-T6 Aluminum
Polyurethane Bumper (ORANGE)
Glow-in-the-Dark Paneling

Bristle Cone attachment:

To control surface contact distance and germicidal zone.

Battery-Powered:

Rechargeable, Li-Ion (Approved for Shipping)
Smart Charger Base (Auto-Off at full charge w/indicator light)
Recharging Time: ~2.5 hrs

Battery Pack Transportation Compliance:

The BODYLight™ Battery Pack, consisting of lithium ion cells external to the Explosion Proof Canister, was examined for conformance to UN/DOT 38.3, Transportation Testing, by Intertek Laboratories. Conformance verification to the Standard for the Battery Pack was issued on November 16, 2017. (Report No.: 103190396CRT-002)

The BODYLight™ Battery Pack passed all test procedures for Altitude Simulation, Thermal Test, Vibration, Shock, External Short Circuit, and Overcharge/Discharge, ensuring its compliance and safety for air and ground transportation.

Further, with the Battery Pack encased in an Explosion Proof Canister, compliant to UL 62133, 153, and 844, provides even greater assurance of safety during transportation.

Dr. Michael S. Kralik
Western Technology
Engineering Director

Battery Pack:

41NR19/66
Output Power: 14.4 VDC, 3.4Ah
Temp Amb: -20° to +40°C. Temp. Rating: T5
Charging: Ta: 0° to +60°C

Charger Base Input:

Frequency of Input: 120/240 VAC, 50/60 Hz, 1A
Output Power: 12-15VDC, 3-5A
Temp Ambient: -25° to +40°C
Temp Rating: T5

Charger Base Compliance:

– UL 1310
– CSA C22.2#223
certification testing for Class 2 Power Units.

*Accessories:

Magnet Mounting attachment
Belt Clip attachment
2 Battery Manifold
DC Power Inverter
Hands-Free Body Strap
* Equipment specifications, options & availability subject to change

Part Numbers (replacement parts):

#8910UVC (UVC BODYLight™) – Complete System: (1) Lighthead, (1) Rechargeable Battery, (1) Charger, & (1) Carrying Case (1) Mounting option.

#8910 NC (BODYLight™) – No Case Option: (1) Lighthead, (1) Rechargeable Battery, (1) Charger (1) Mounting option.

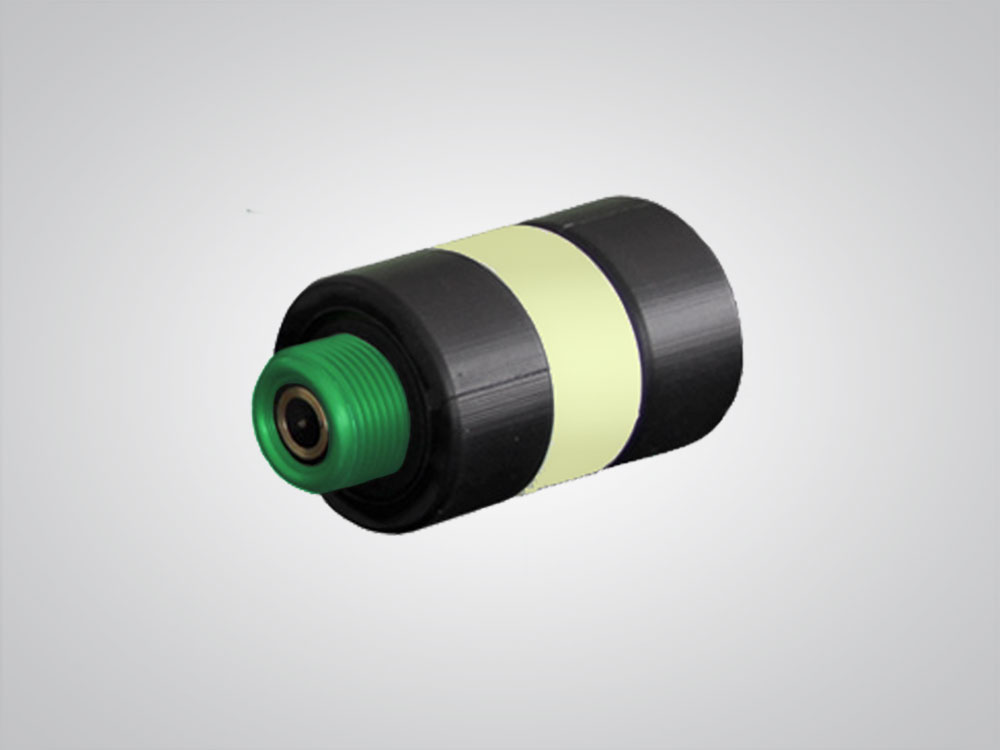

#8910 BATTERY – Rechargeable Auxiliary Battery for the BODYLight™ (extra/replacement).

#8910 BATTERY CHARGER – Battery Charger for the BODYLight™ (extra/replacement).

#8910 INVERTER – DC Power Inverter to be used with the BODYLight™.

#8910 CASE – Lime Green Resin Case for the BODYLight™.

#8910 CLIP – Clip Mount for the BODYLight™.

#8910 DUAL BATTERY BELT PACK – 2 Battery Belt pack (manifold) for the BODYLight™.

#8910 HOOK – Hook mount for the BODYLight™.

#8910 UVC LIGHTHEAD – UVC Lighthead only (extra/replacement).

#8910 LIGHTHEAD – Lighthead only (extra/replacement).

#8910 MAGNET – Magnet Mount for the BODYLight™.

#8910 TRIPOD – Tripod Base for the BODYLight™.

#8910 BL Harness – Body Harness: 40” (small to 40” Girth)
#8910 BL Harness – Body Harness: 50” (Adult to 50” Girth)
#8910 BL Harness – Body Harness: 60” (Big & Tall to 60” Girth)

Country of origin:

Designed & Manufactured in the USA

Reviews

Full Product Description

WT GERM KILLER® – UVC BODYLight

Model 8910UVC | Industrial Portable UVC Germicidal Light


Western Technology is very aware of the urgent need to address the safety of workers in our current pandemic situation. We have the technology and capability to ensure deployment of a dependable germicidal UVC light system. Our solution is the WT GERM KILLER®. This UV-C LED light is built around our existing BODYLight platform that is currently used by our marine, industrial and aviation customers. It is a rugged handheld battery-operated light now equipped with 275nm UVC LEDs.

The WT GERM KILLER®  uses Ultraviolet Germicidal Irradiation (UVGI). UVGI is a disinfection method that uses short wavelength ultraviolet (UV-C) light to kill or inactivate microorganisms by destroying their DNA, leaving them unable to perform vital cellular functions.

The technology we use is 99.9% effective in killing or inactivating mold and mold spores, bacteria including MRSA, TB, E. coli, Listeria, Salmonella, C. diff spores, CRKP, VRE and all viruses including colds, flu, measles, HIV Retrovirus, Infectious Hepatitis, Norovirus and the Coronavirus.

6 Most Frequently Asked Questions

Open the tabs to watch the video responses

How effective is the UVC BODYLight at killing COVID-19?

How much UVC radiation can a person be safely exposed to?

How much does it cost to operate the UVC BODYLight?

How does UVC light kill the COVID-19 virus?

Does the UVC BODYLight generate ozone gas?

How do I know if germicidal UVC light is being emitted?

UVC Light Emissions

The projected angle of the light emission is over 120°, providing wide UVC coverage and an efficient sanitizing zone of germicidal radiation. The “red”” visible light emission is provided not only to see where to disinfect, but also to provide a visual reference as to where the invisible UVC light is projected. This is for your safety and the safety of others during operation.

Note: UVC option requires operator wear PPE and confirmation required training has been completed. UVC 275nm can be hazardous to human health with extended unprotected exposure.

UV, UVC, BODYLight™, body light, BODYLight, rechargeable, battery-powered, portable, explosion proof, led, light, area light, flashlight, kick-it tough, led safety lights, explosion proof rechargeable battery-powered light, explosion proof rechargeable battery-powered led light, portable LED work light, floodlight, wt-germ killer, disinfect,

The 275nm peak wavelength of UVC emissions generated from the WT GERM KILLER®, kills germs & viruses in less than 2 seconds¹ when held 4-inches from a surface.

¹ It has been shown that a 1-second exposure of 265nm UVC light at 1.93 mW/cm2 was sufficient to induce a 100% germicidal effect on microorganisms. (Note: 262nm UVC radiation has been shown to be the peak germicidal wavelength.) Dean SJ, Petty A, Swift S, et al. “Efficacy and safety assessment of a novel ultraviolet C device for treating corneal bacterial infections.” Clin Experiment Ophthalmol. 2011; 39(2):156–163. [PubMed: 21105972] read full article

Quick RecognitionUV, UVC, BODYLight™, body light, BODYLight, rechargeable, battery-powered, portable, explosion proof, led, light, area light, flashlight, kick-it tough, led safety lights, explosion proof rechargeable battery-powered light, explosion proof rechargeable battery-powered led light, portable LED work light, floodlight, wt-germ killer, disinfect, angled

The bumpers on the WT GERM KILLER® – UVC BODYLight are fluorescent orange in color to allow for quick recognition of the purpose of this light. Further the glow-in-the-dark features on the top of the light head and the ring around the battery pack will continue to glow for about 24 hours to aid in FOD safety.

Battery Pack & Power Supply Options

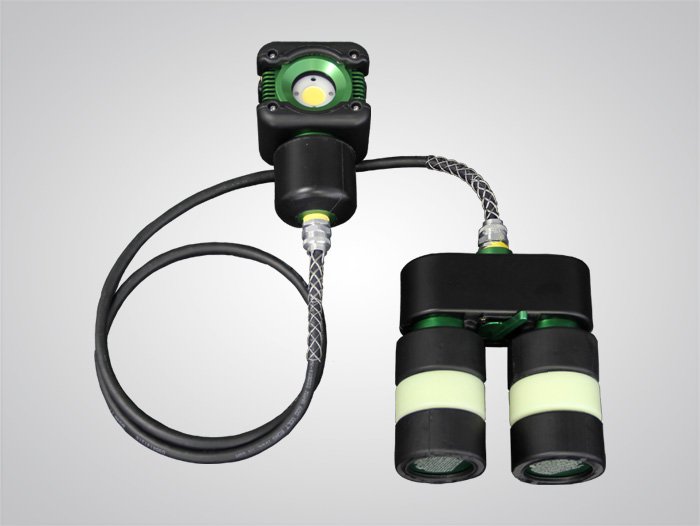

The Battery Pack used with the WT GERM KILLER® – UVC BODYLight is interchangeable with the standard BODYLights currently, so there is commonality in charging and deployment already established. The runtime on a single charge is about 4-hours at high power. The light head can also be connected to a belt-mounted manifold equipped with two battery packs, and a 6-foot cable, providing 8-hours of operations. There is also a power supply box & plug available for longer continuous use.

BODYLight™, body light, BODYLight, explosion proof rechargeable battery-powered LED light, rechargeable, battery-powered, LED, explosion proof, 8910
BODYLight, manifold, accessories, explosion proof, rechargeable, battery-powered, LED, light, explosion proof rechargeable battery-powered LED light
a-model power supply box, power supply, plug, continuous use, bodylight, body light, uva bodylight, uvc bodylight
Bristle Cone Attachment

Another feature for added safety is the Bristle Cone. This cone provides a quick reference for the user as to the effective sanitizing field distance from a surface and also to protect from scattered UVC light off of surfaces to the user and other workers in the vicinity. The Bristle Cone is constructed with nylon bristles set in a ring that is held in place by the front bumpers.

UV, UVC, BODYLight™, body light, BODYLight, rechargeable, battery-powered, portable, explosion proof, led, light, area light, flashlight, kick-it tough, led safety lights, explosion proof rechargeable battery-powered light, explosion proof rechargeable battery-powered led light, portable LED work light, floodlight, wt-germ killer, disinfect, bristles, bristle cone

scroll up, iconFor pricing and availability on the WT GERM KILLER® – UVC BODYLight
Click the “Add to Cart” button above and submit a product inquiry today!

Go to our Industries & Applications page to view more examples of our lights in use.

American Flag, designed & manufactured in the USA Designed & Manufactured in the USA

*Equipment specifications, options & availability subject to change.
(Last update: August 25, 2021)
